High precision trapezoidal STUB ACME thread plug gauge acme thread ring gauge

High precision trapezoidal STUB ACME thread plug gauge acme thread ring gauge

Model NO.: 1907001
Price:: USD 5.00-10.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Month
Country of Origin: shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Brand Name:customizable
Model Number:1907001
Accuracy:0.001mm +-0.0005mm
Measuring range:1/4''~6''
Material:Gcr15
Certification:Certification
Delivery time:3-5 Days for standard item
MOQ:1 Set
Standard:GB/T 3934
OEM:OEM Services Provided
Package:Safety Box
Product name:Thread ring Gauge

Product Description

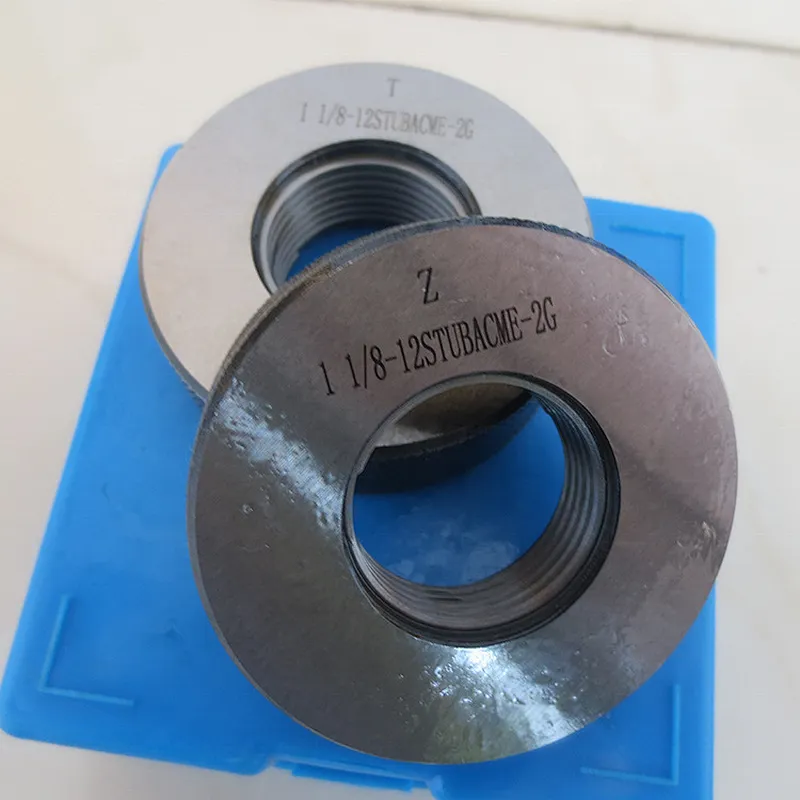

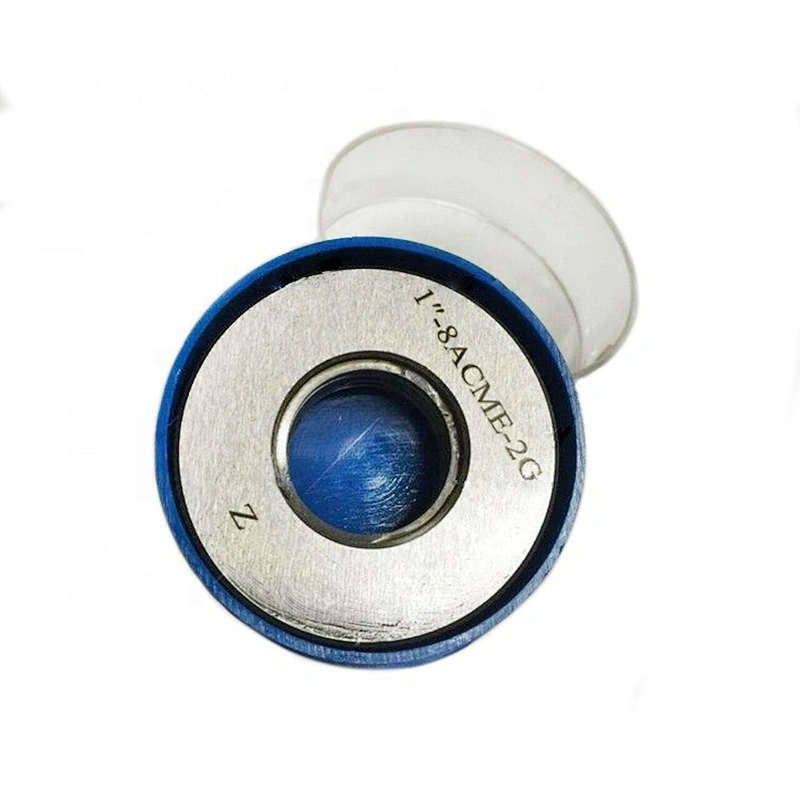

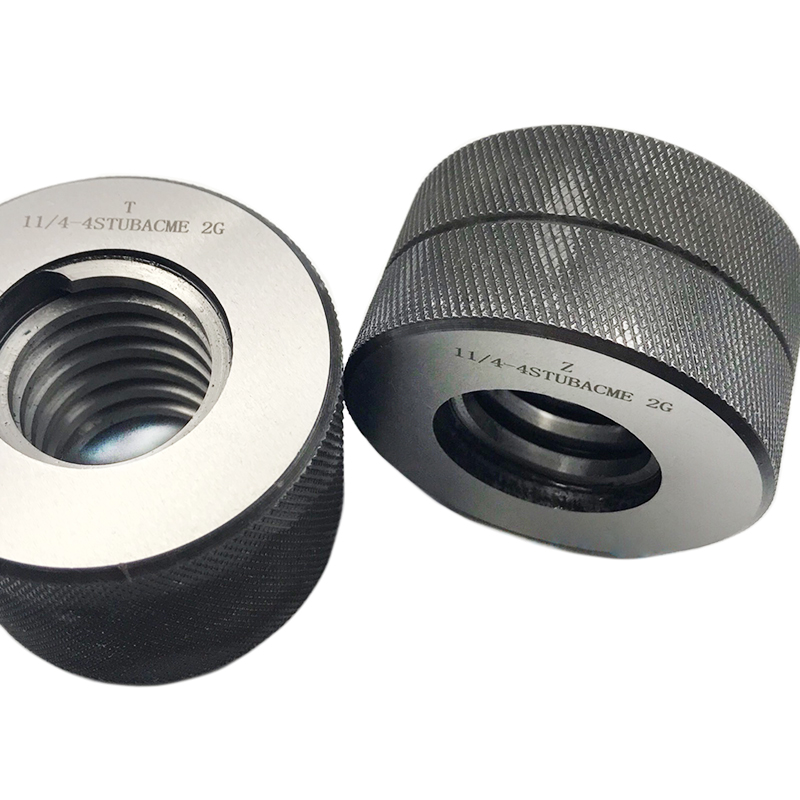

ACME thread ring gauges & ACME thread plug gauges & STUB ACME thread ring gauges & ACME thread plug gauges
Ring gages used to check external thread, plug gages used to check internal thread.
GO & NOGO, RH(ring hand) & LH(left hand) available
We also can provide multiple start ACME thread gauges and modified ACME thread gages.
The ACME thread forms are with 29° thread angle, their thread height is half of the pitch, the peak and crest are flat.
We can provide general-purpose ACME, Centralizing ACME, Stub-ACME thread ring & plug gauges, GO NOGO.
We have many Standard ACME thread gages in stock, 100% calibrated with quality assurance. the price is low with top quality!

General-purpose ACME thread gages
Usually, general-purpose ACME thread should be used.
Classes of fit: 2G, 3G, 4G (2G is the priority of use)
These ACME thread gages are produced according to ACME B1.5

♦ Material:Oil hardened tool steel-Gcr15, high wear resistance.
♦ Hardness: 58-62 HRC
♦ Ring gages are solid, no need setting plug gages; Plug gauges are Taperlock- double ends with one handle.
♦ All gages are brand new
♦ Gage manufacturer ISO9001 certified
♦ Bewell know the importance of controlling temperature and humidity when testing gages, the temperature will be 20 degree +-
0.5 degree, the humidity will be 45%-65%.
♦ Long-form calibration certificate can be provided, but it needs to be told in advance and need extra costs.
♦ We can provide laser marking service on the gauges. For example, clients’ Logo.
♦ Delivery time: 3-5 days. We will send goods by express, FedEx, DHL or UPS. A tracking number will be sent to clients once
shipped.
♦ all these gauges are fixed limit gauges, inspecting thread on a pass/ fail basis, not checking the detailed size of thread.

We can provide as below general-purpose ACME thread ring gauges & plug gages :

1/4″-16 ACME	1/4″-12 ACME	5/16″-14 ACME	3/8″-8 ACME	3/8″-12 ACME
3/8″-16 ACME	7/16″-12 ACME	1/2″-10 ACME	5/8″-8 ACME	3/4″-5 ACME
3/4″-6 ACME	3/4-8 ACME	7/8″-5 ACME	7/8″ -6 ACME	7/8″-8 ACME
1″-5 ACME	1″-6ACME	1 1/8″-5 ACME	1 1/8″-7 ACME	1 1/4″-5 ACME
1 1/4″-6 ACME	1 3/8″-4 ACME	1 3/8-6 ACME	1 1/2″-4 ACME	1 1/2″-6 ACME
1″5/8-6 ACME	1″ 5/8-8ACME	1 3/4″-4 ACME	1 3/4″-5 ACME	1 3/4″-6 ACME
1 7/8-6 ACME	1 7/8-10 ACME	2″-4 ACME	2″-6 ACME	2 1/8-6 ACME
2 1/4″-3 ACME	2″1/4-4 ACME	21/4″-6 ACME	2 3/8-6 ACME	2 1/2″-3 ACME
2 1/2″-4 ACME	2 3/4″-3 ACME	2 3/4-6 ACME	2″7/8-4 ACME	2 7/8-6 ACME
3″-2 ACME	3 1/4-6 ACME	3 1/2″-2ACME	3″1/2-4 ACME	3 1/2″-6 ACME
3″1/2-8 ACME	3 5/8-4 ACME	3 5/8-6 ACME	3 3/4-6 ACME	4″-2 ACME
4″-6 ACME	4 1/2″-2 ACME	4 1/2″-4 ACME	4 1/2″ –5 Acme	5″-2 ACME

Details Images

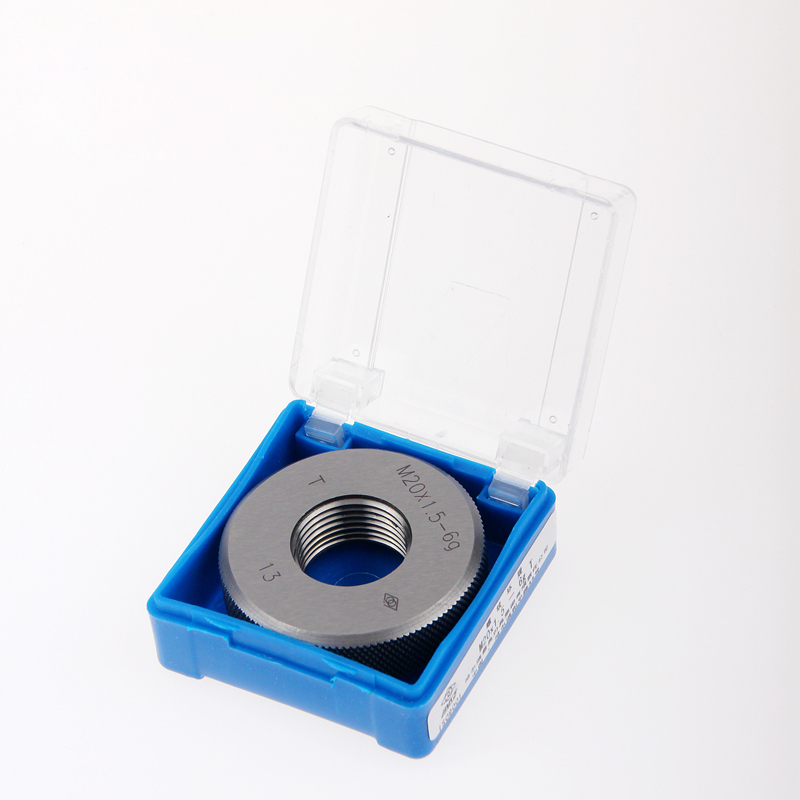

Packing&Shipping

1.Thread plug gauge and thread ring gauge all packed with standard plastic tool box,if you need customized boxes,pls inform us in advance.
2.the tool box packed with Pearl cotton,then in carton box,if for big heavry product,we will packed with wooden box.

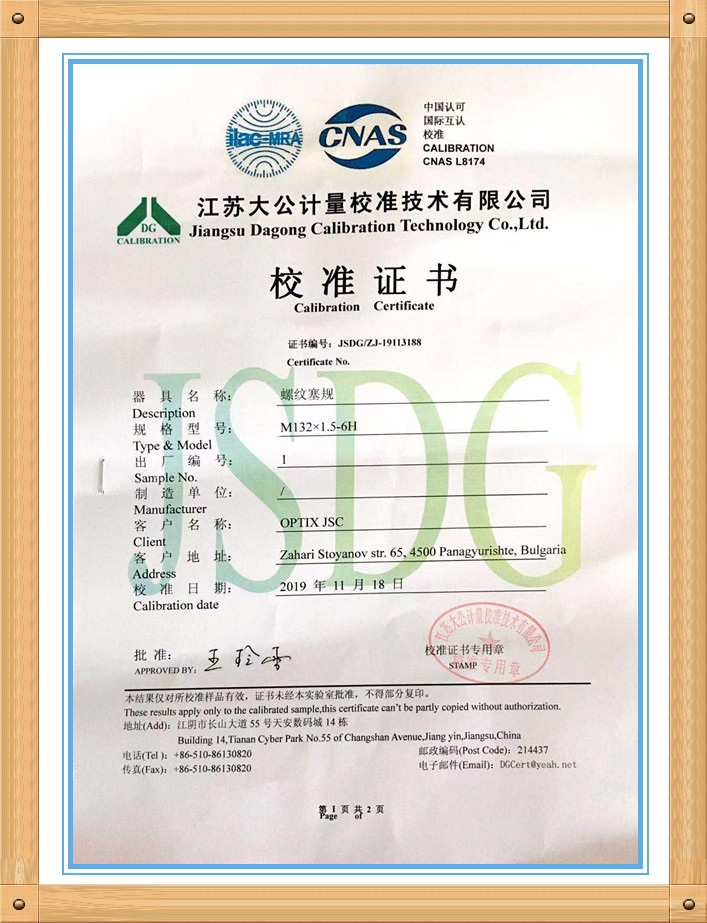

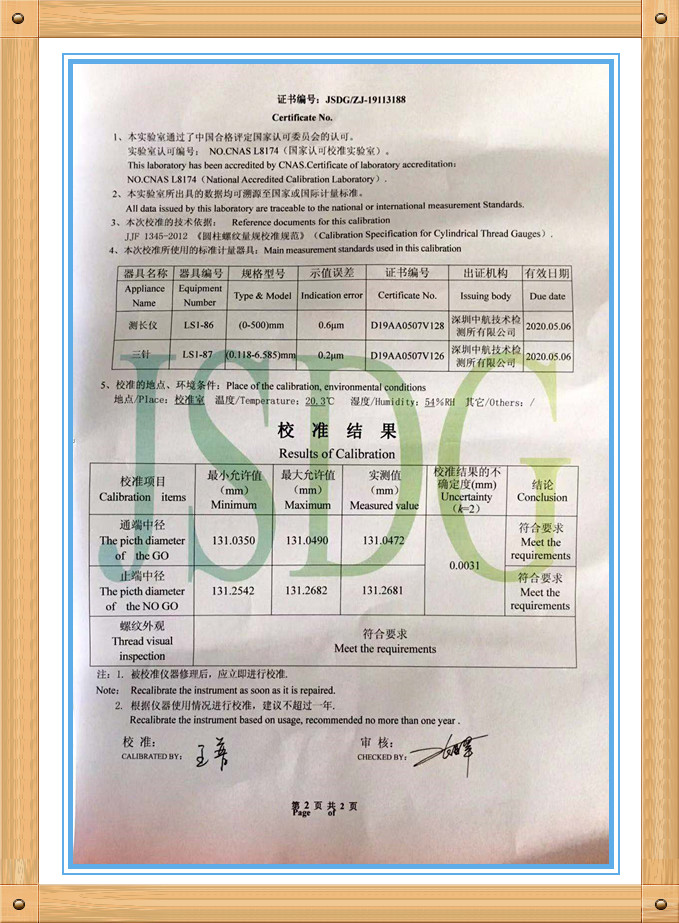

Certificate

The customized thread gauge with the factory test data report,if you need offical certification,pls inform us in advance,we will sent to the thrid-party inspection,and the standard stock gauge should check with us if can provide any certificate
