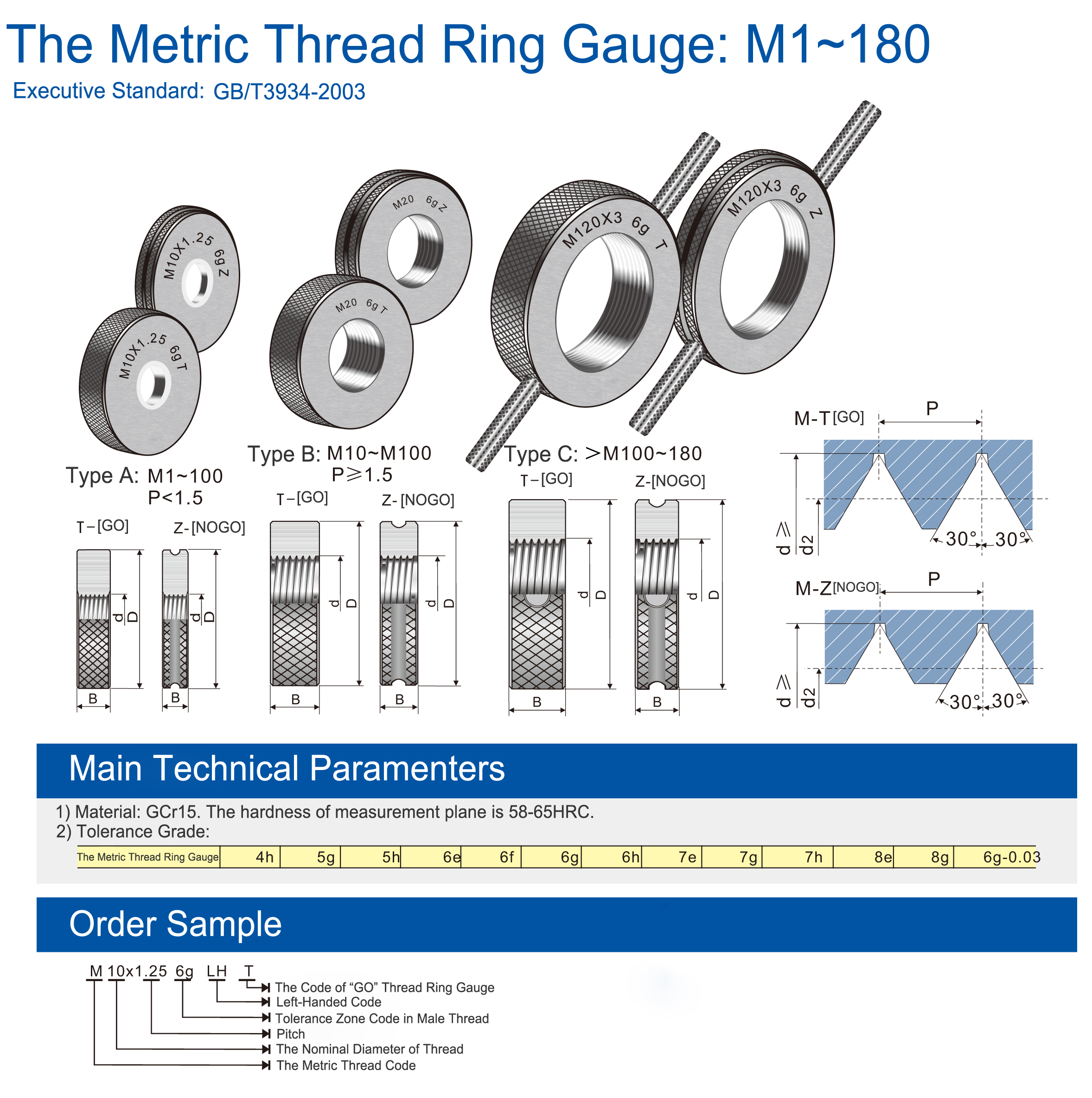

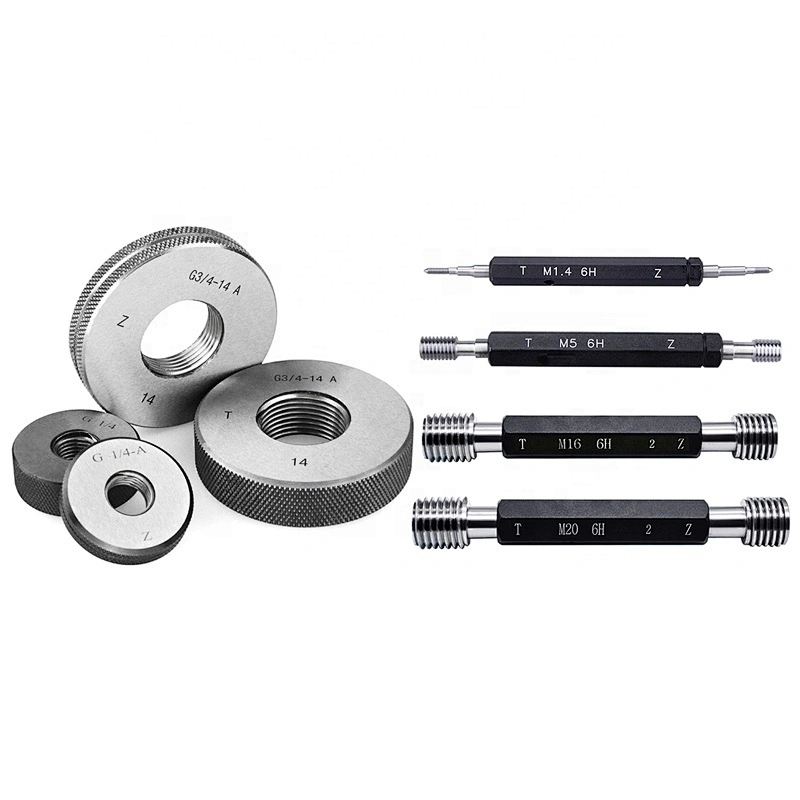

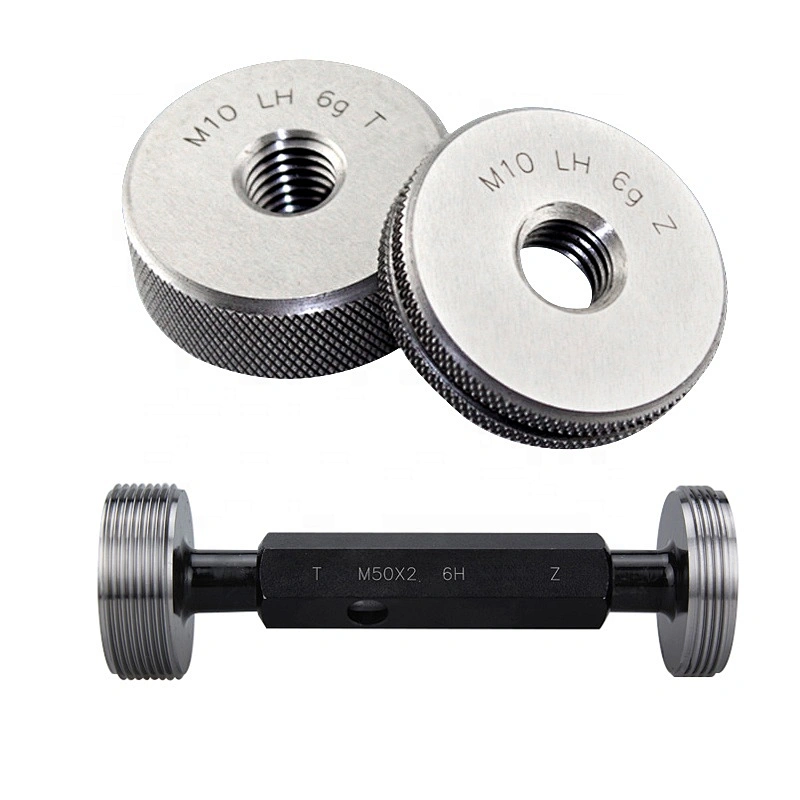

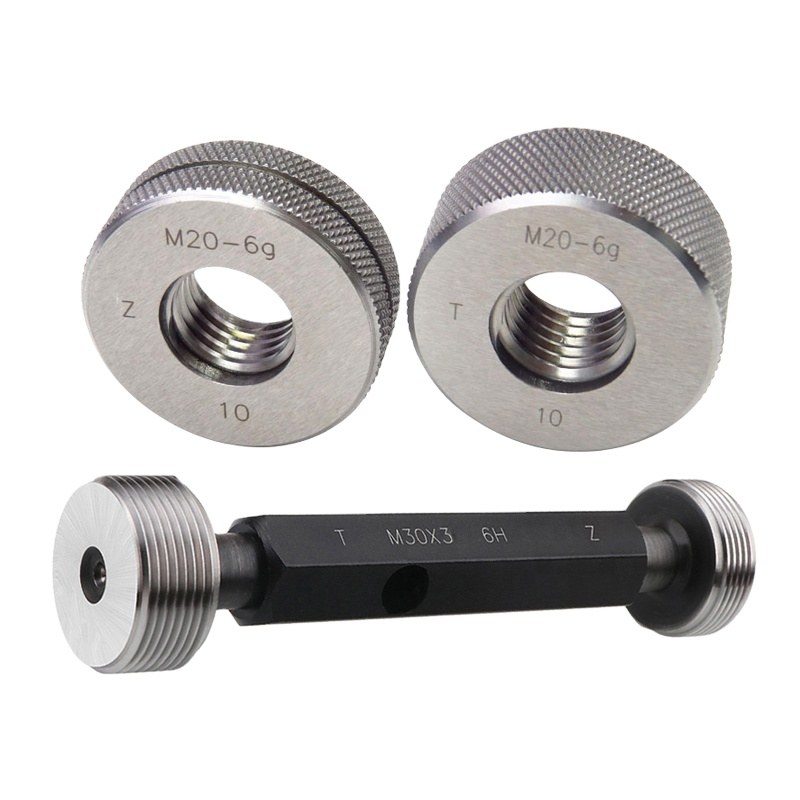

Ring gauges used to check external thread. Plug gauges used to check internal thread GO & NOGO, RH(right hand) & LH(left hand) available Metric, United Inch( UNEF, UNF, UNC, UN, UNS), Stub ACME, ACME, BSPP, PSPT, NPT, Trapezoidal (Tr), and Whitworth thread gauges, etc. Material: GCR15 Hardness: 58-65 HRC Tolerance: +/-0.001mm~+/-0.0025mm Certificate: Factory test Data or offical certificate Welcome Customized
Type
Series
Measuring range
Standard Tolerance
Metric gauge
M
M1~M300
6g,6H,7g,7H
US Units gauge
UN UNC UNF UNEF UNS NPSC NPSM NPSH NPSF NPSI NPSL NH STI
0~12''
2A,2B
Jap Units gauge
PT
0~12''
2A,2B
Imperial standard gauge
BSW BSF
0~12''
2A,2B
Taper gauge
NPT NPTF Z BKG R RB Rc RP PT ZG WKG BSPT ANPT PTF
0~6''
2A,2B
Trapezoidal gauge
Tr ACME STUB-ACME
0~6''
2G,3G,4G
other
API G PF PS BSP ST BSPP DIN spline gauge
0~6''

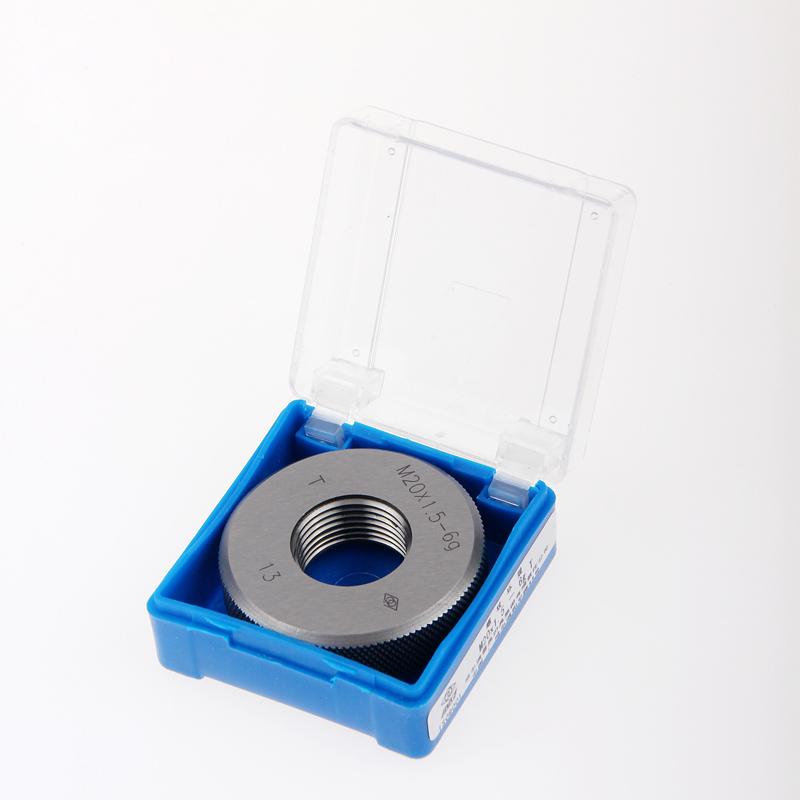

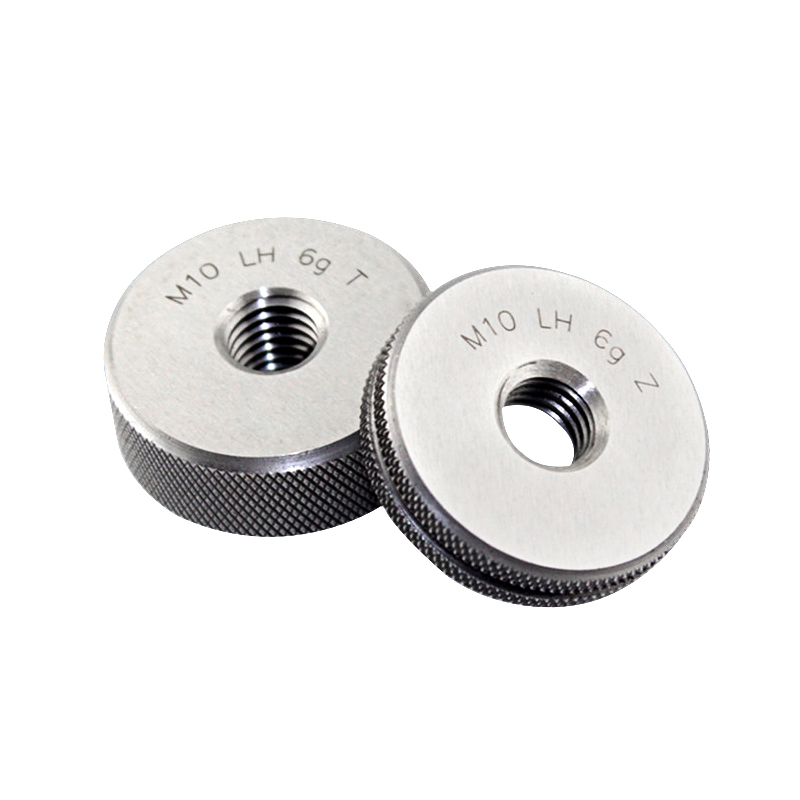

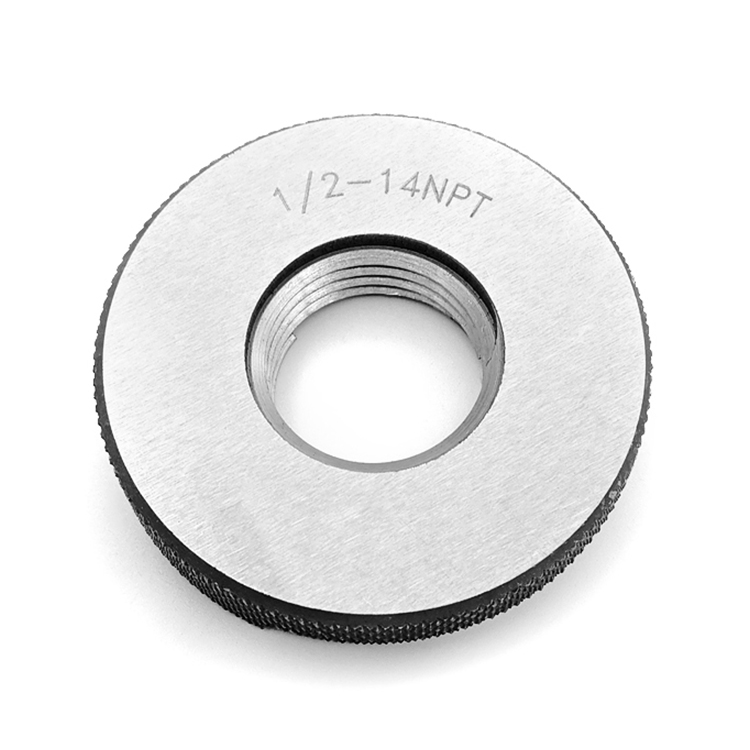

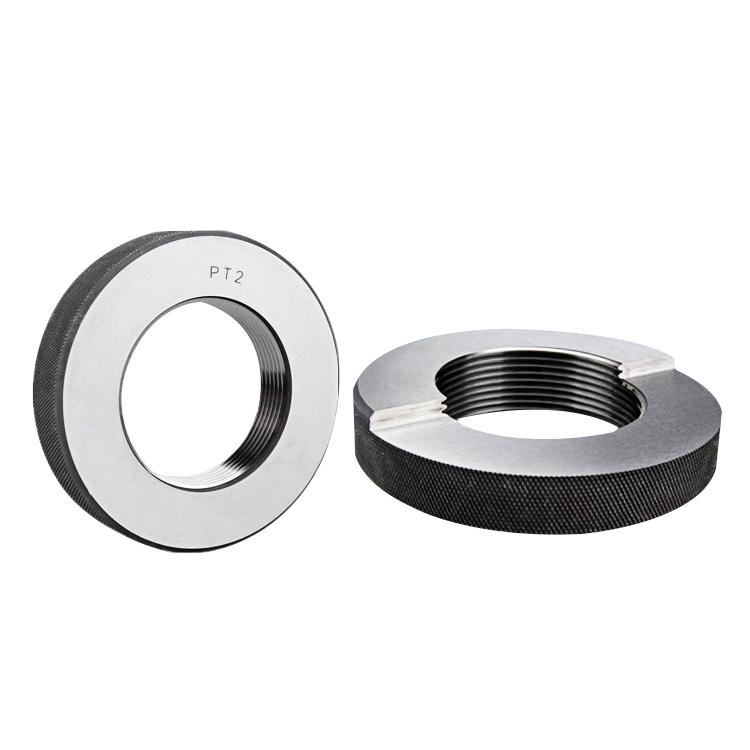

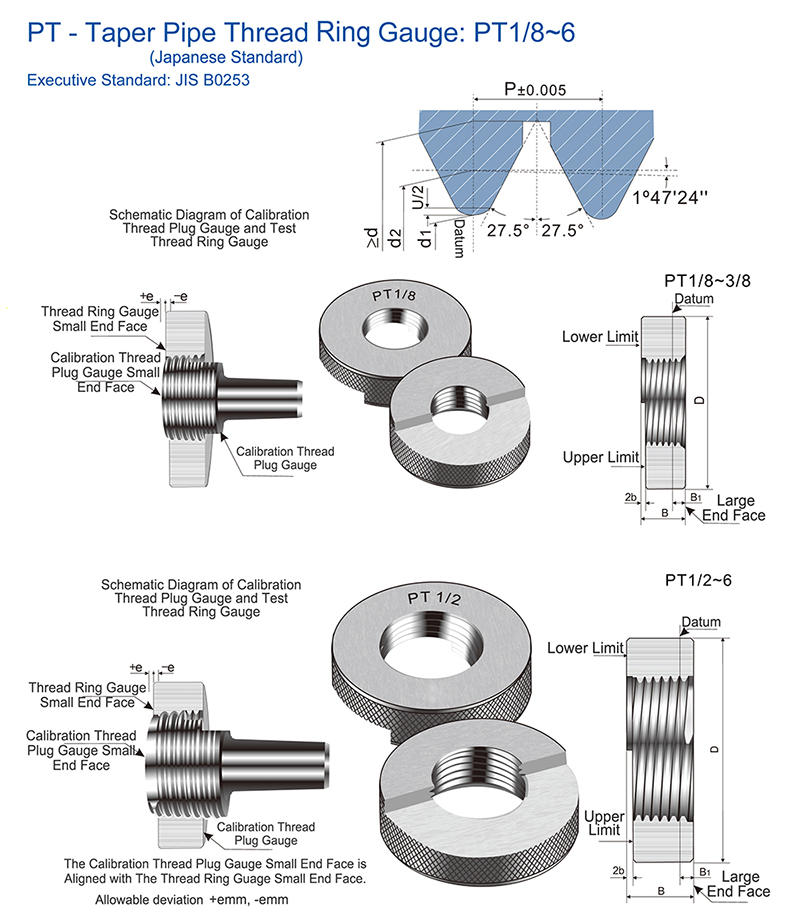

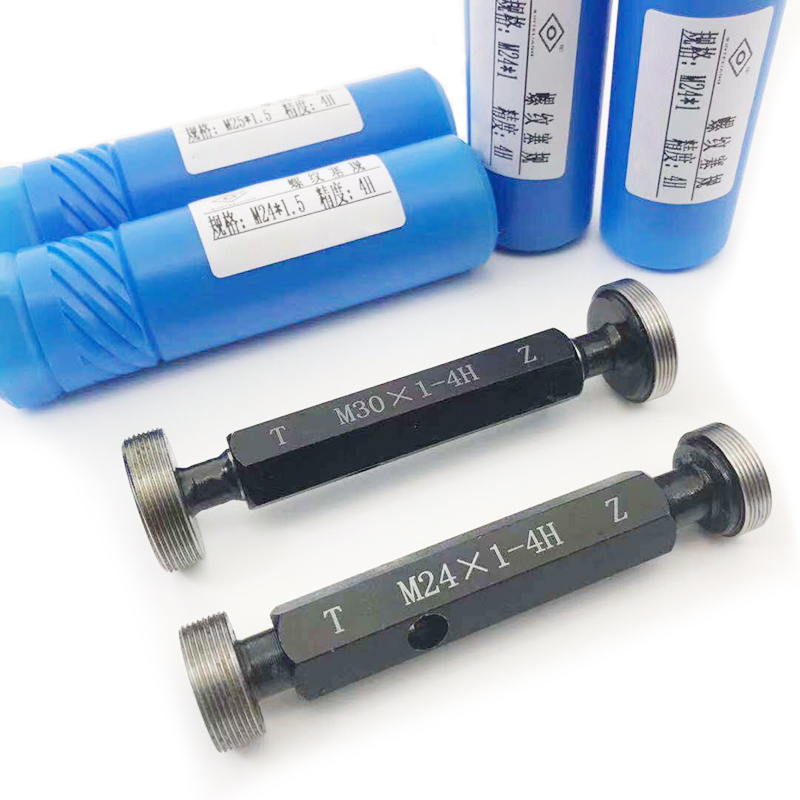

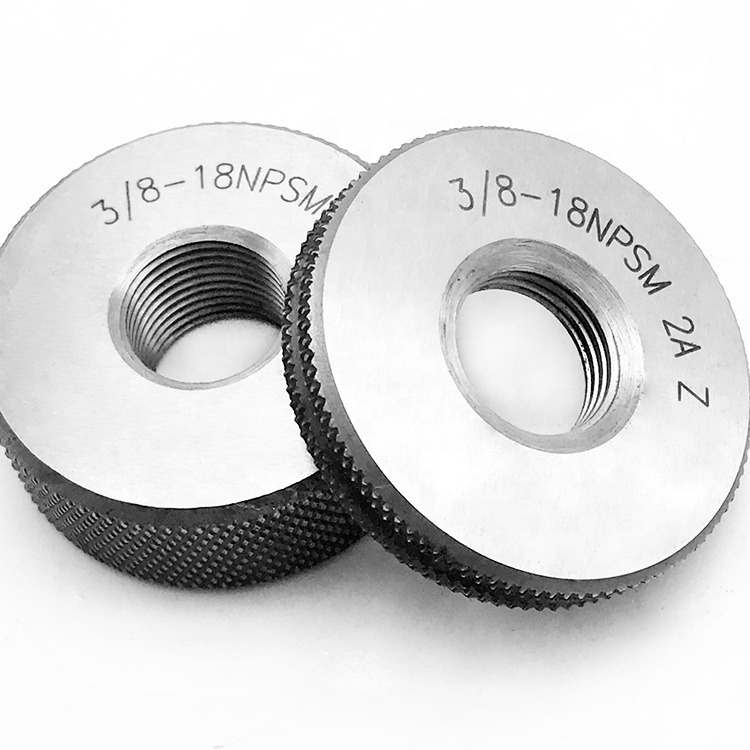

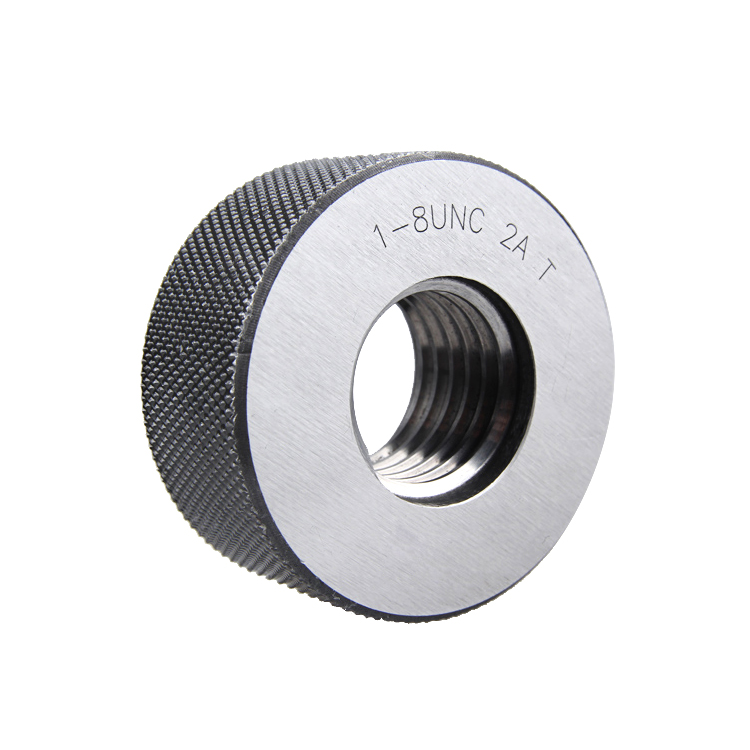

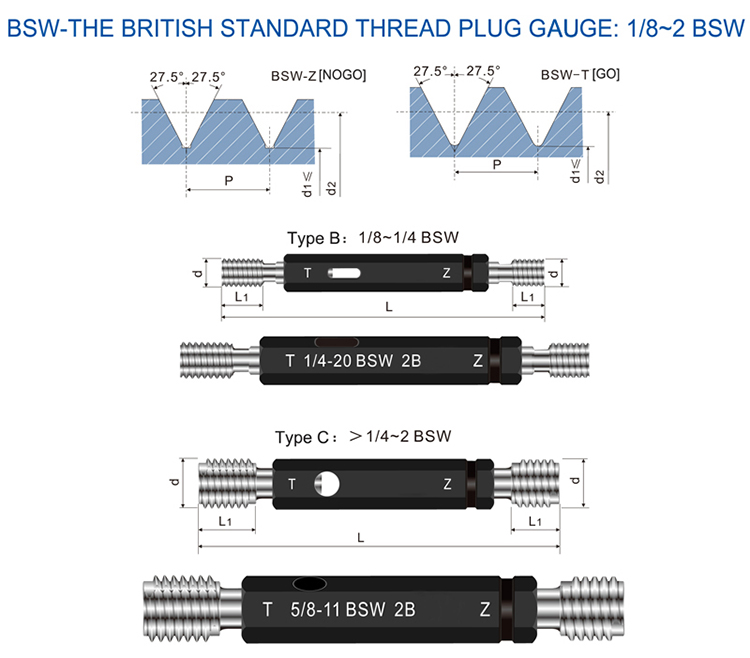

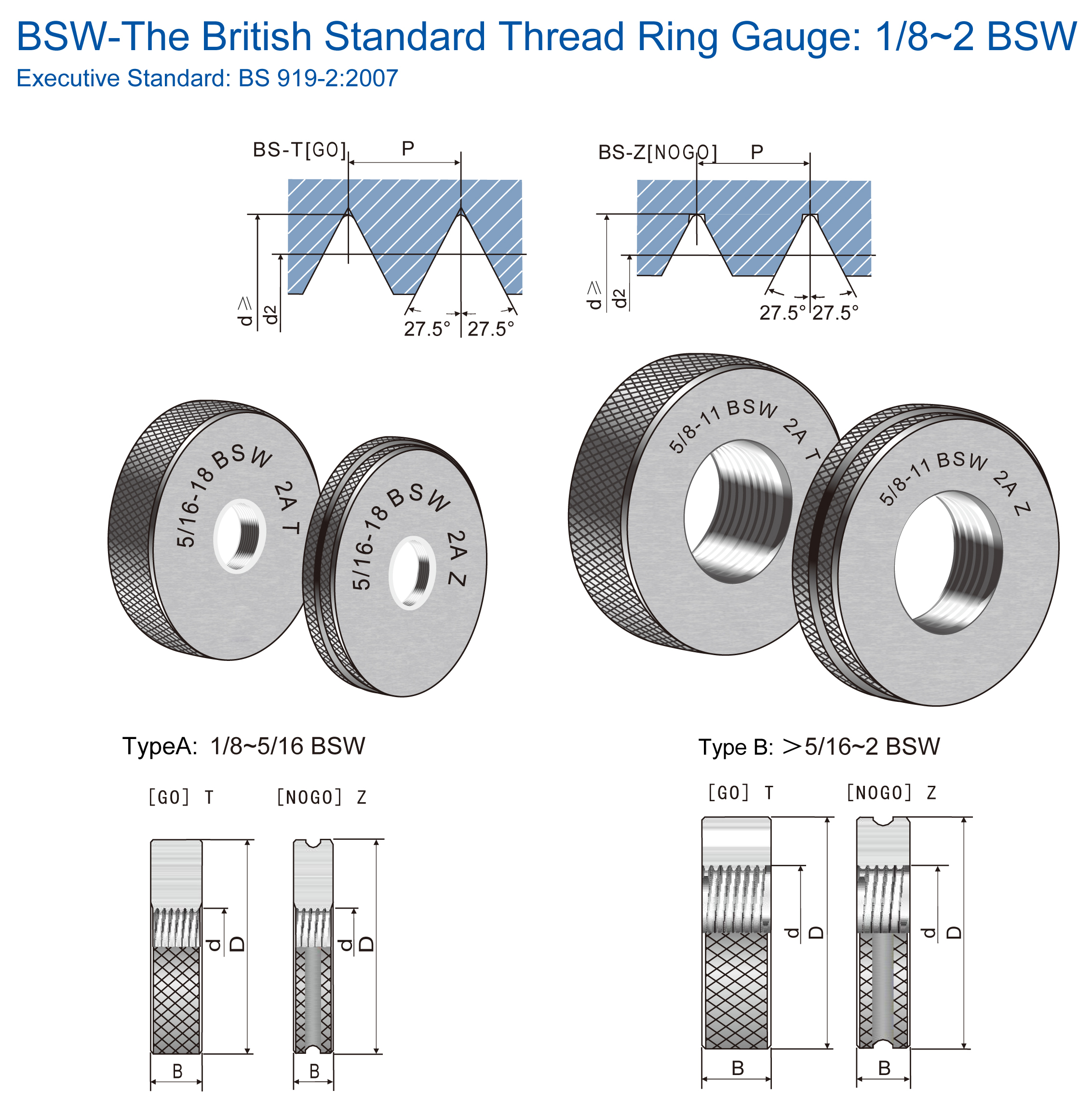

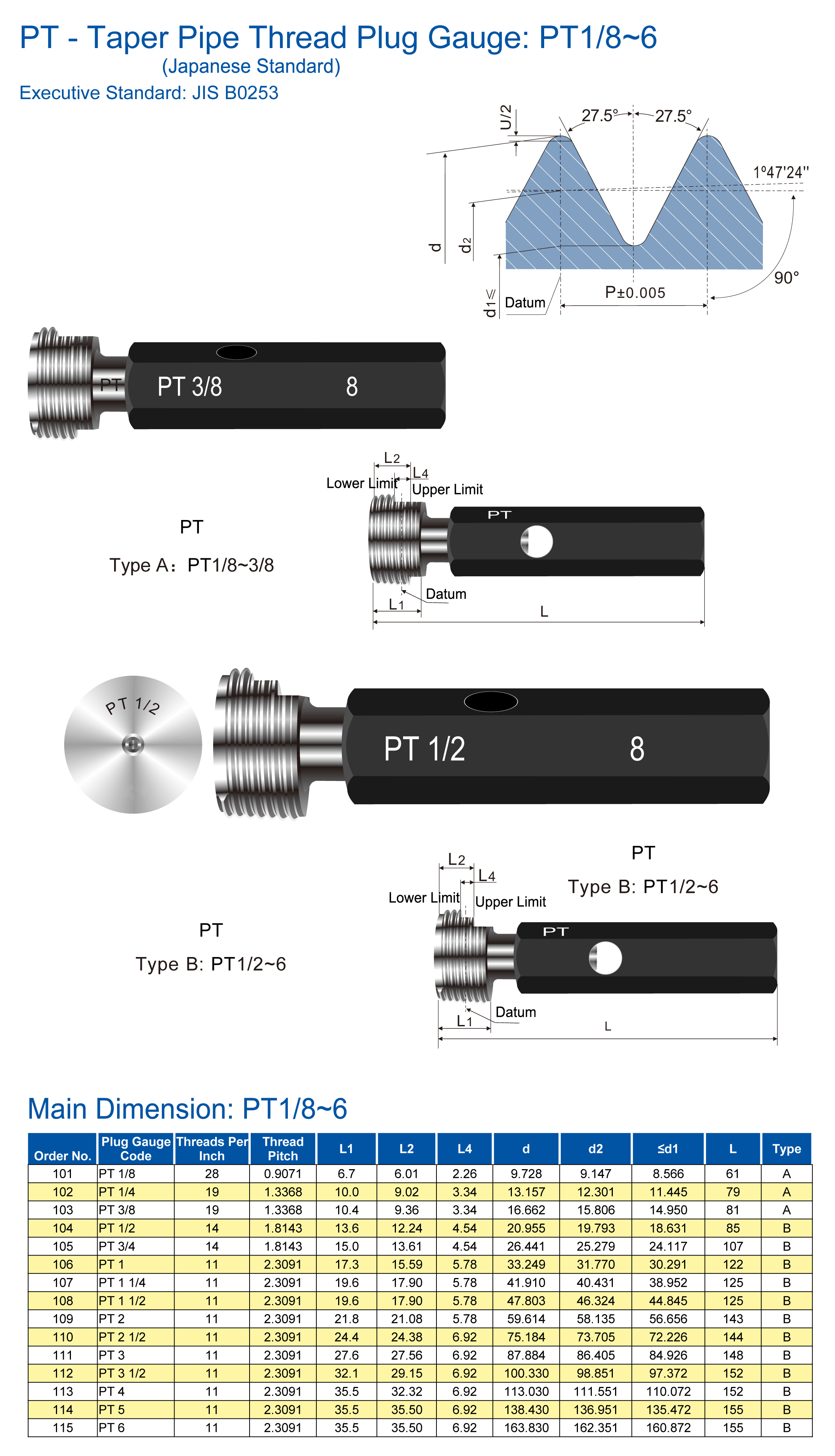

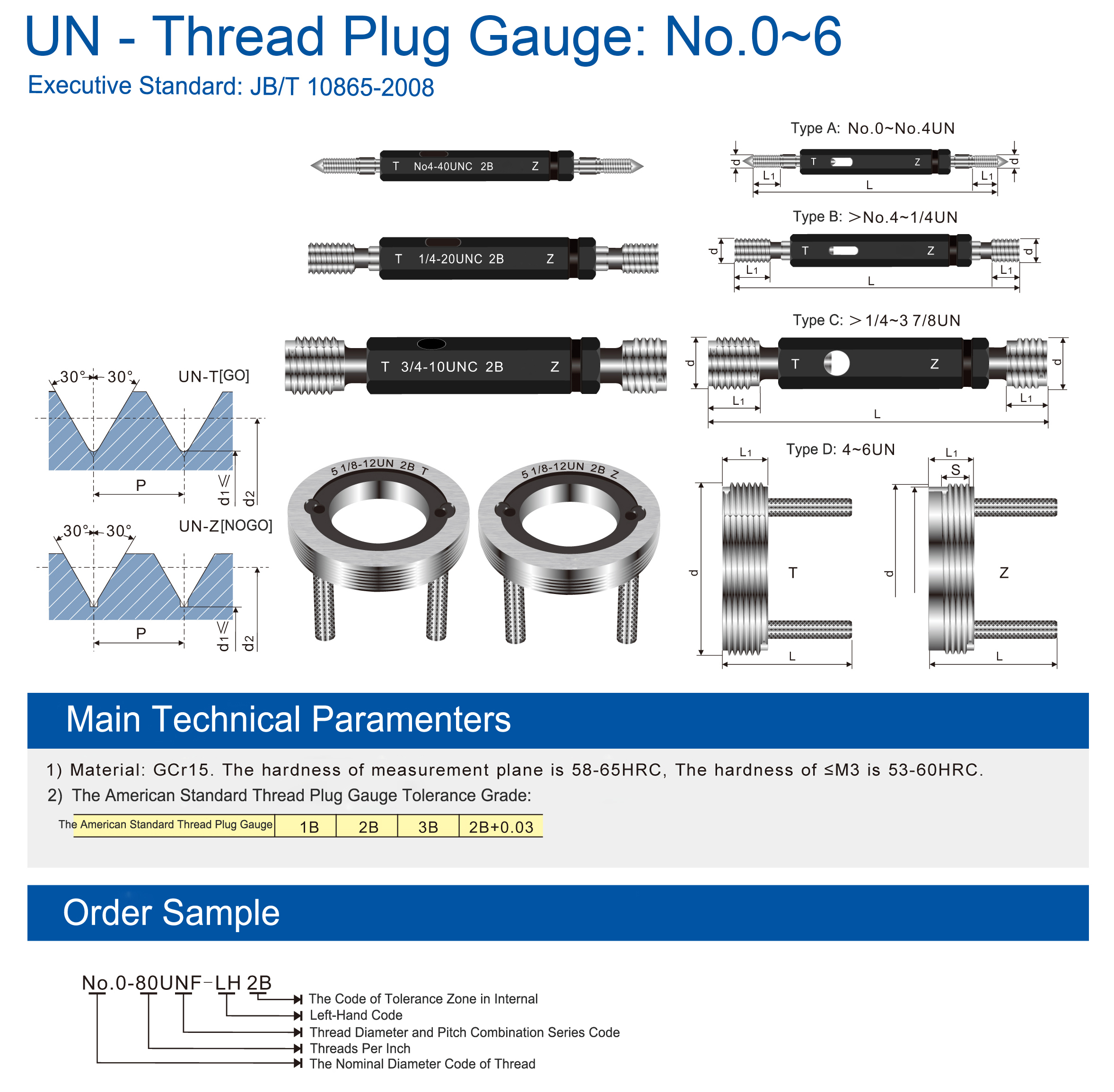

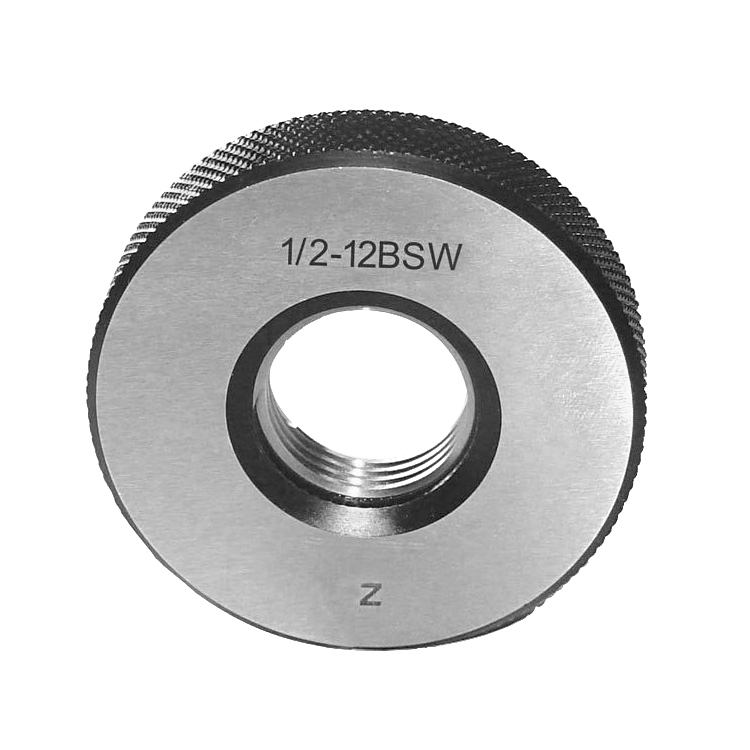

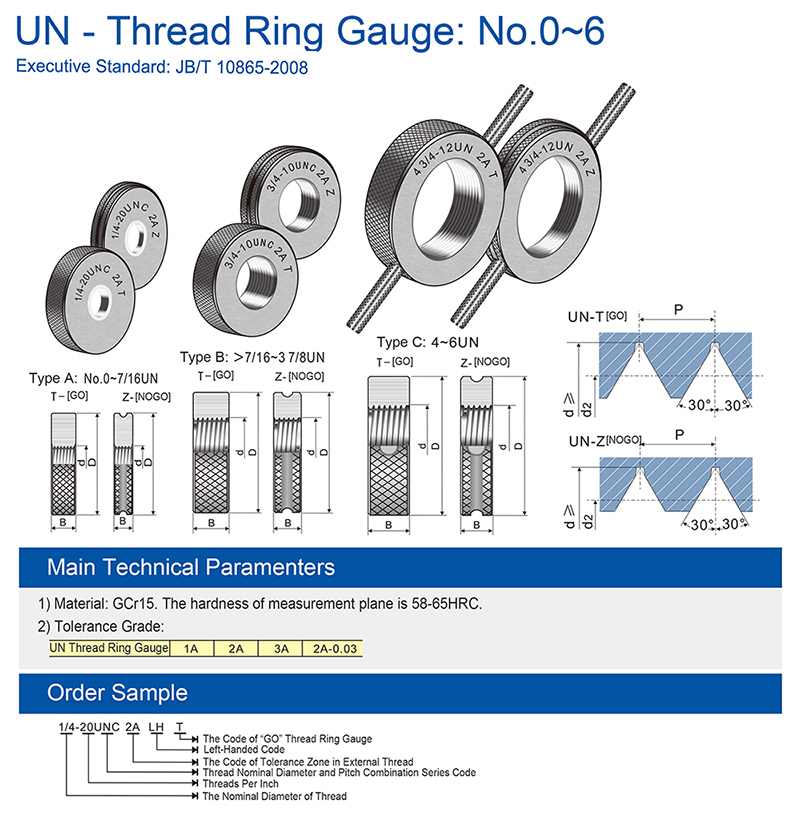

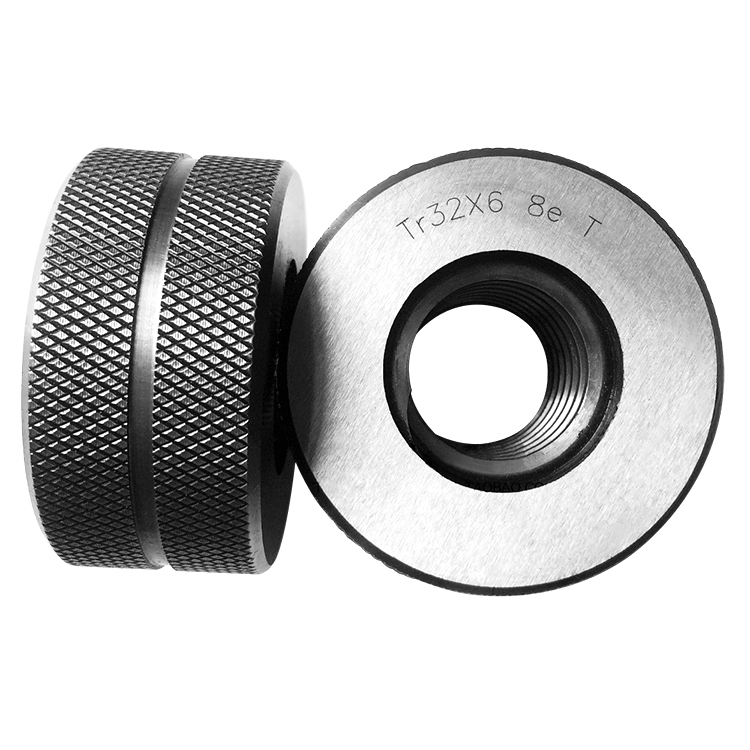

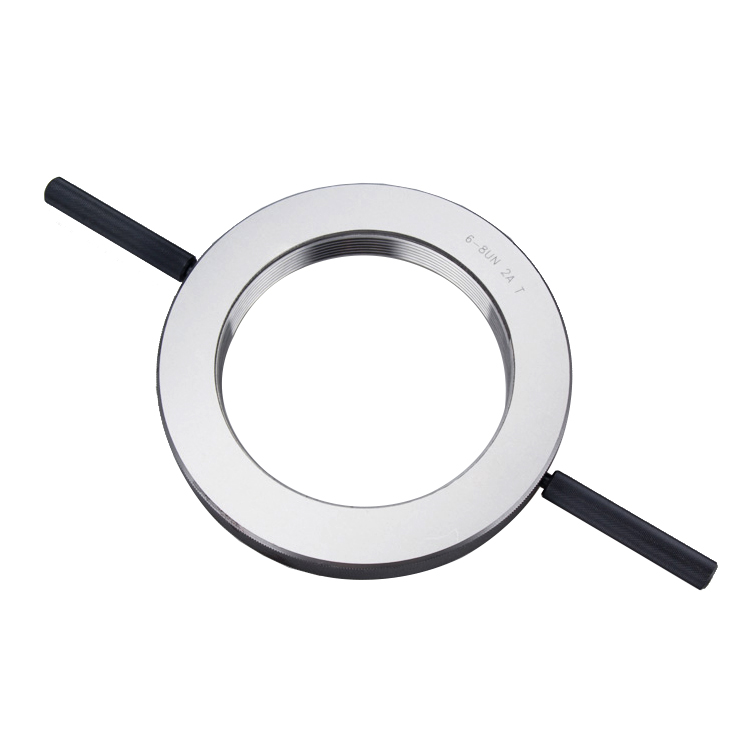

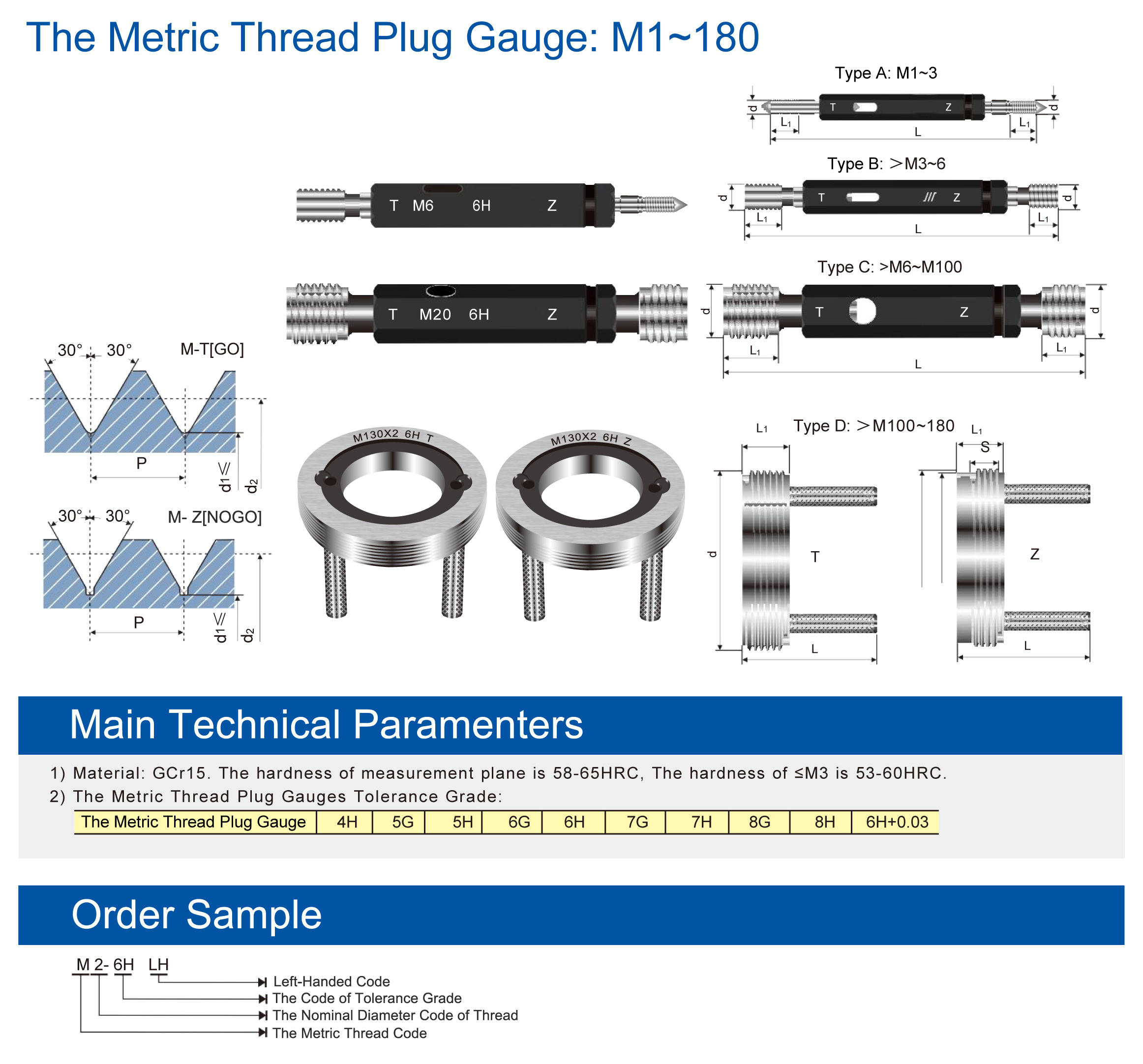

Details Images
Packing&Shipping

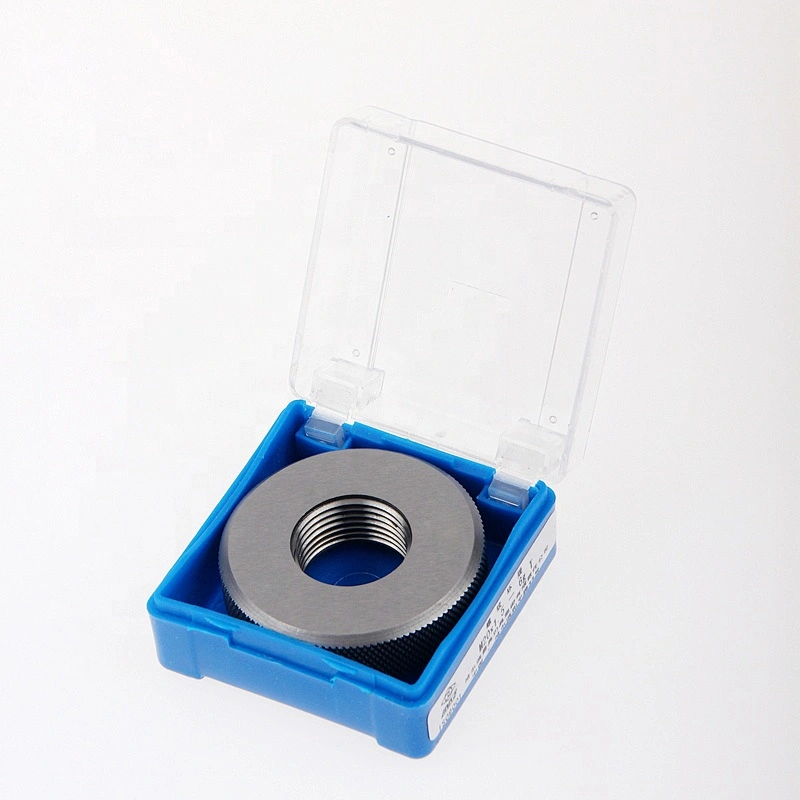

1.Thread plug gauge and thread ring gauge all packed with standard plastic tool box,if you need customized boxes,pls inform us in advance.
2.the tool box packed with Pearl cotton,then in carton box,if for big heavry product,we will packed with wooden box.

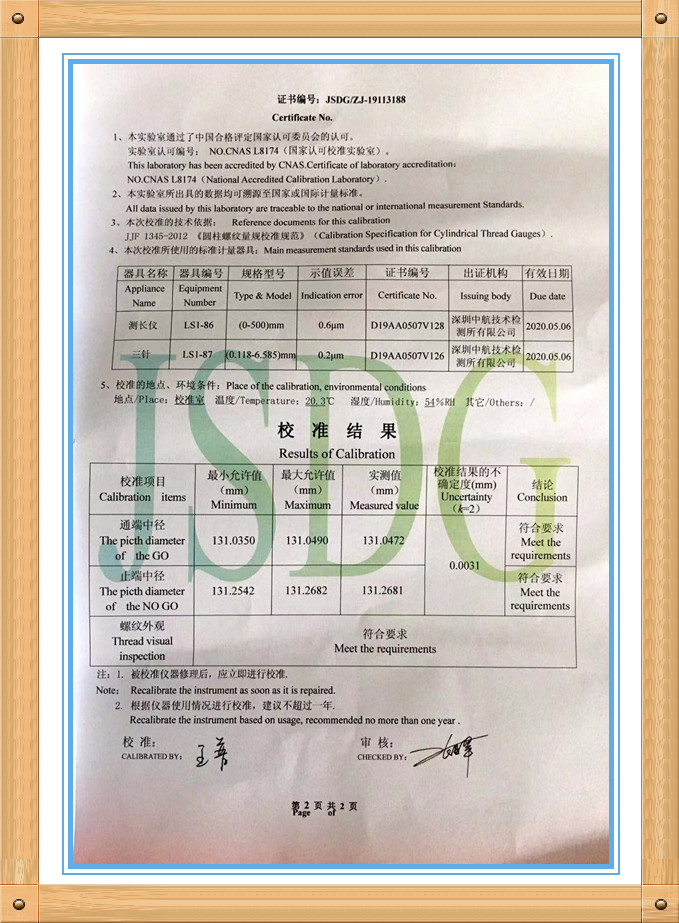

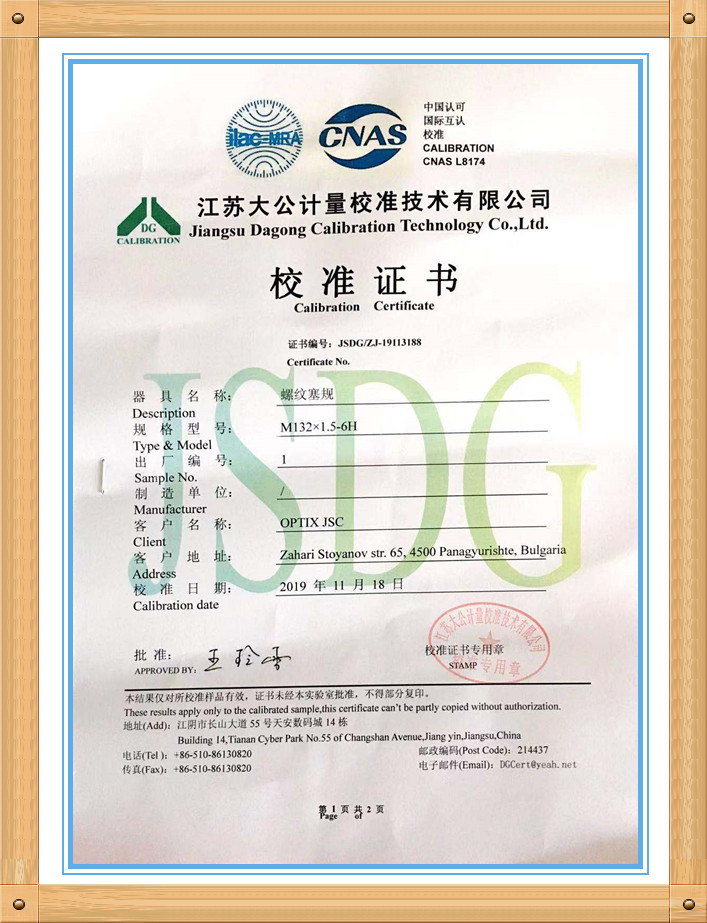

Certificate
The customized thread gauge with the factory test data report,if you need offical certification,pls inform us in advance,we will sent to the thrid-party inspection,and the standard stock gauge should check with us if can provide any certificate

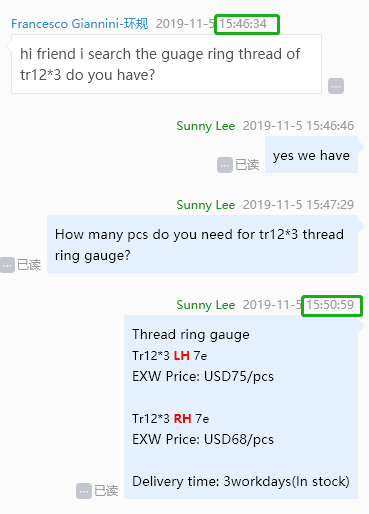

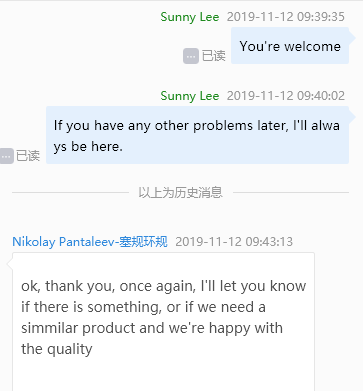

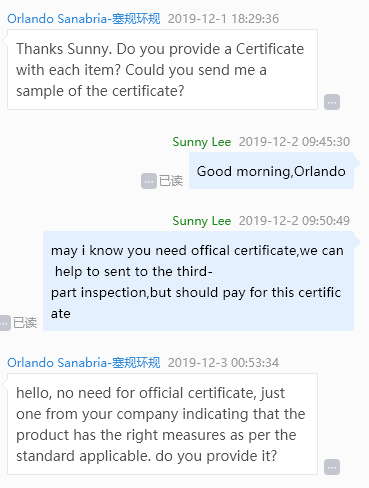

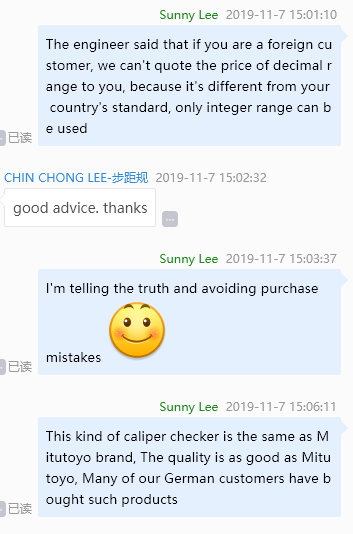

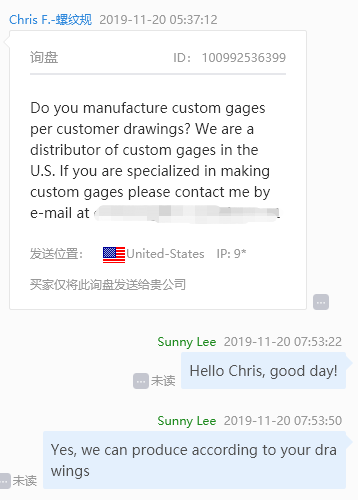

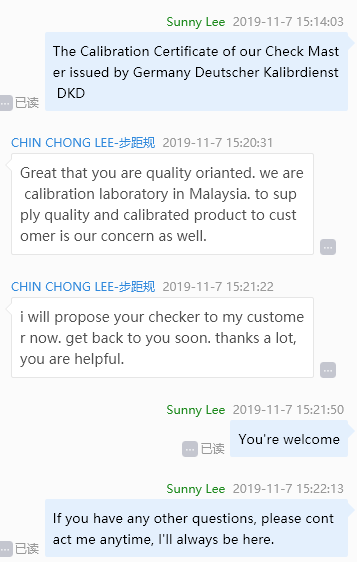

Customer Photos
If you sent inquiry off work time,We will reply you once we start work
We can quote in 5mins for standard gauges
We have experience engineer can give you professional suggest
we can provide factory test Data if you do not need official certificate
We also can provide offical certificate
We provide after-sales service always
Why Choose Us
Most of standard specification have in stock,we can delivery in 3wordays,Non-standard specification can be customized
We can provide official certificate,if customer do not need official certificate,we also can provide factory test data
The customized gauge can provide No LOGO,the MOQ is 1pc,if the quantity is big,can mark customer's LOGO
