- Place of Origin:CN
- Brand Name:customizable
- Model Number:1901667
- Accuracy:0.001mm +-0.0005mm
- Measuring range:M1~M1000
- Material:Steel
- Certification:Calibration Certification
- Delivery time:3-5 Days for standard item
- MOQ:1 Set
- Standard:GB/T 3934
- OEM:OEM Services Provided
- Package:Safety Box
- Product name:Thread ring Gauge
Product Paramenters
Product Description

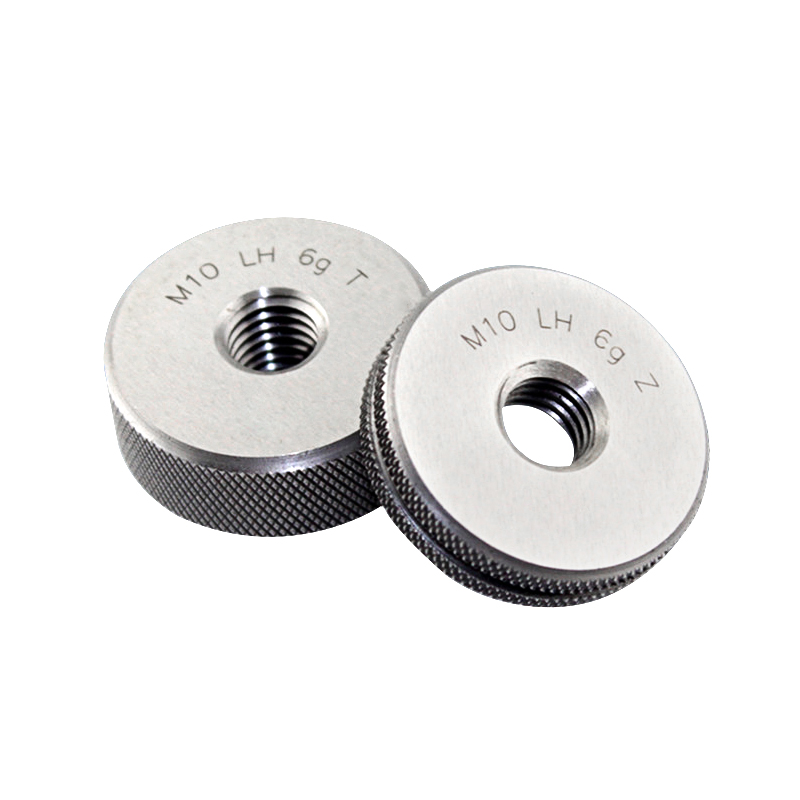

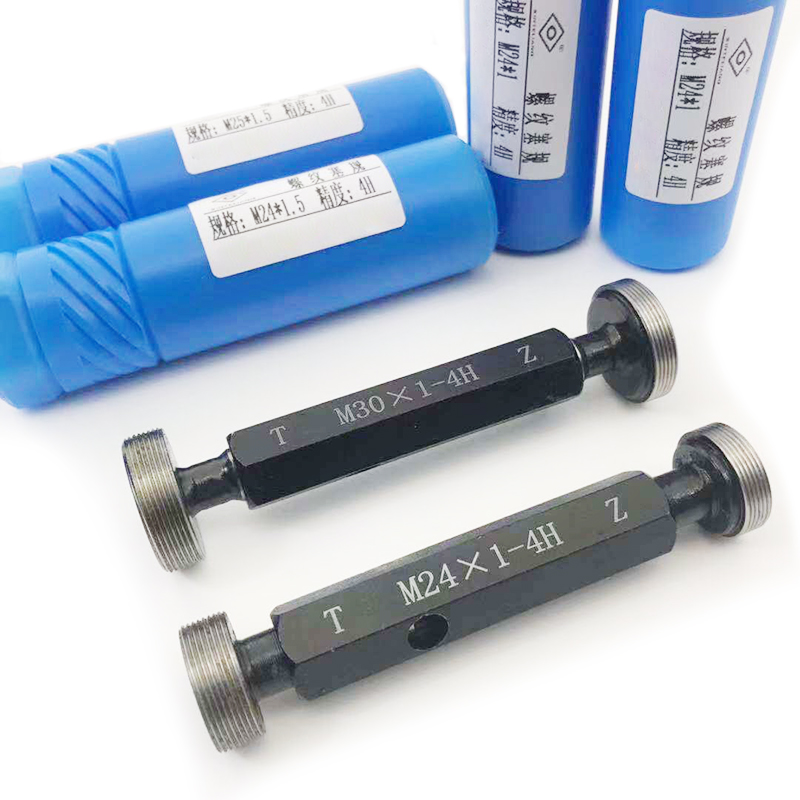

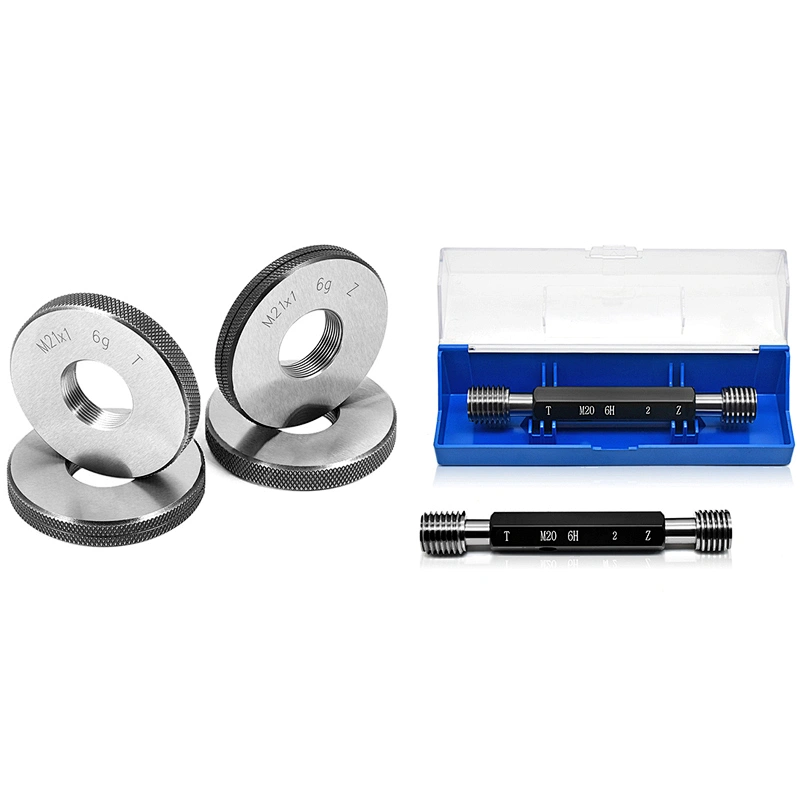

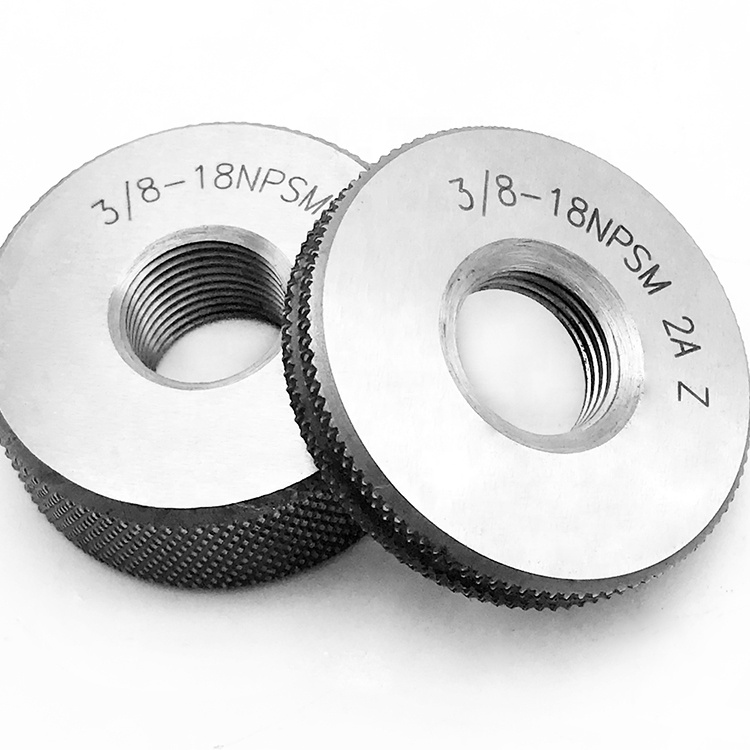

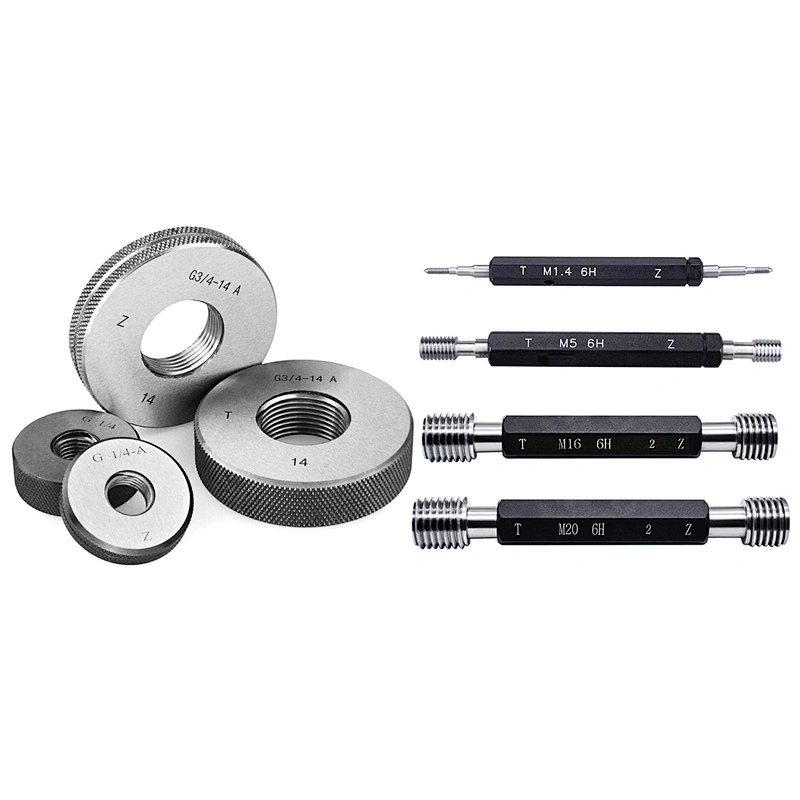

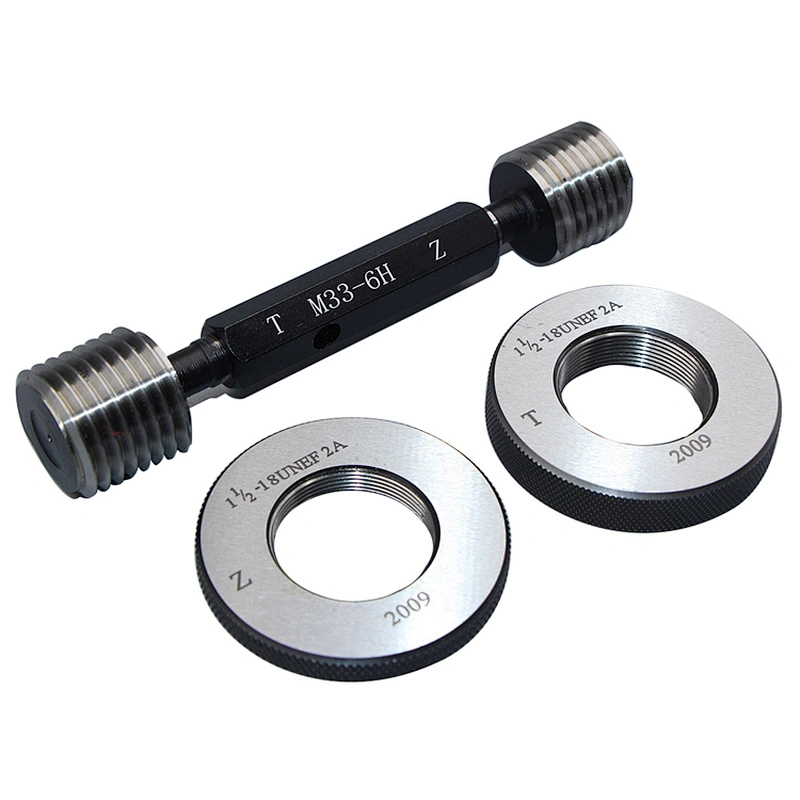

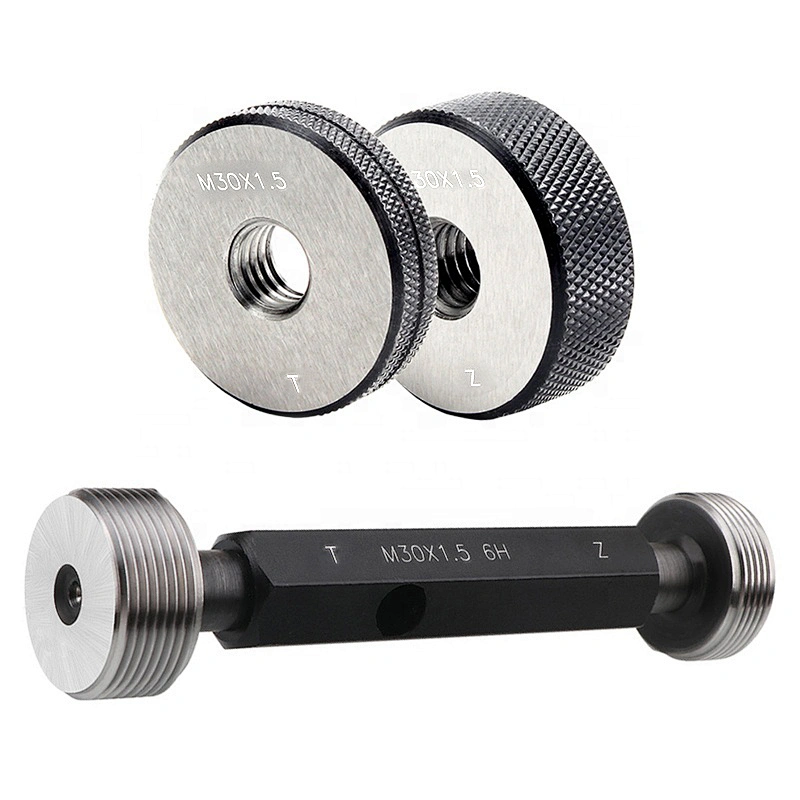

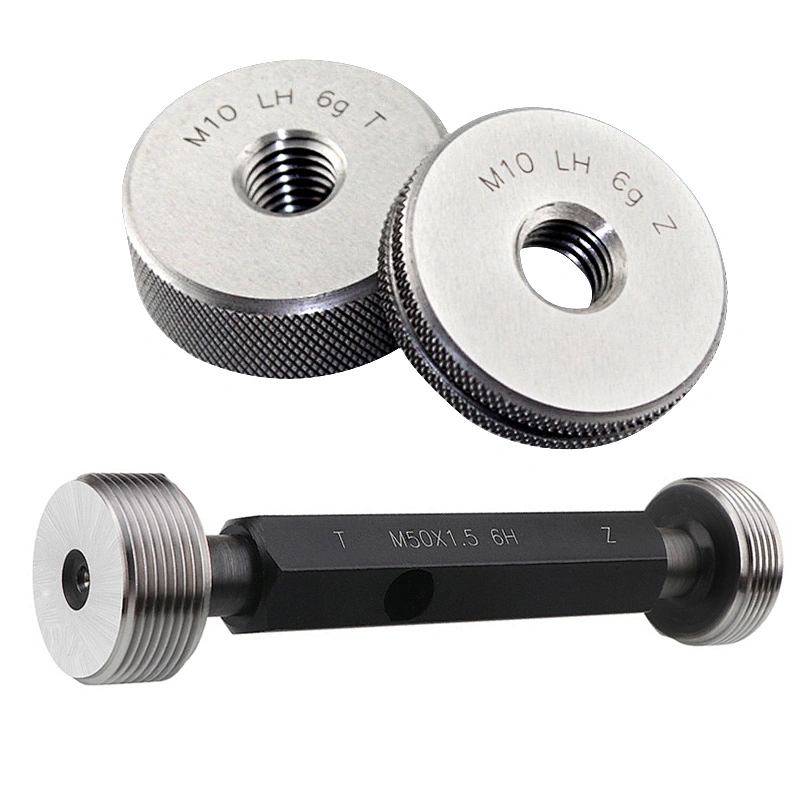

Ring gauges used to check external thread. Plug gauges used to check internal threadGO & NOGO, RH(right hand) & LH(left hand) availableMetric, United Inch( UNEF, UNF, UNC, UN, UNS), Stub ACME, ACME, BSPP, PSPT, NPT, Trapezoidal (Tr), and Whitworth thread gauges, etc. Material: GCR15Hardness: 58-65 HRCTolerance: +/-0.001mm~+/-0.0025mmCertificate: Factory test Data or offical certificateWelcome Customized
Type | Series | Measuring range | Standard Tolerance |

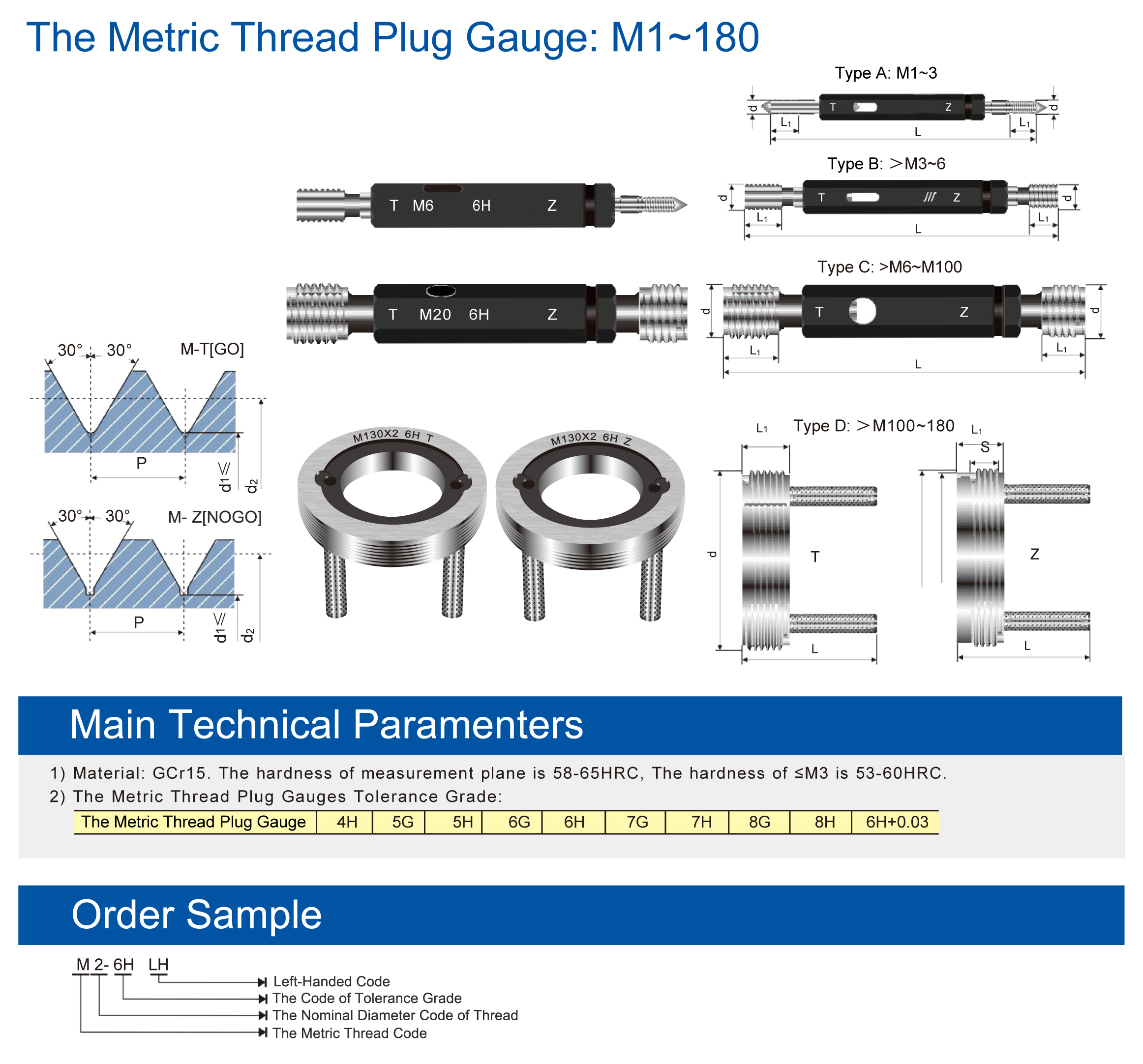

Metric gauge | M | M1~M300 | 6g,6H,7g,7H |

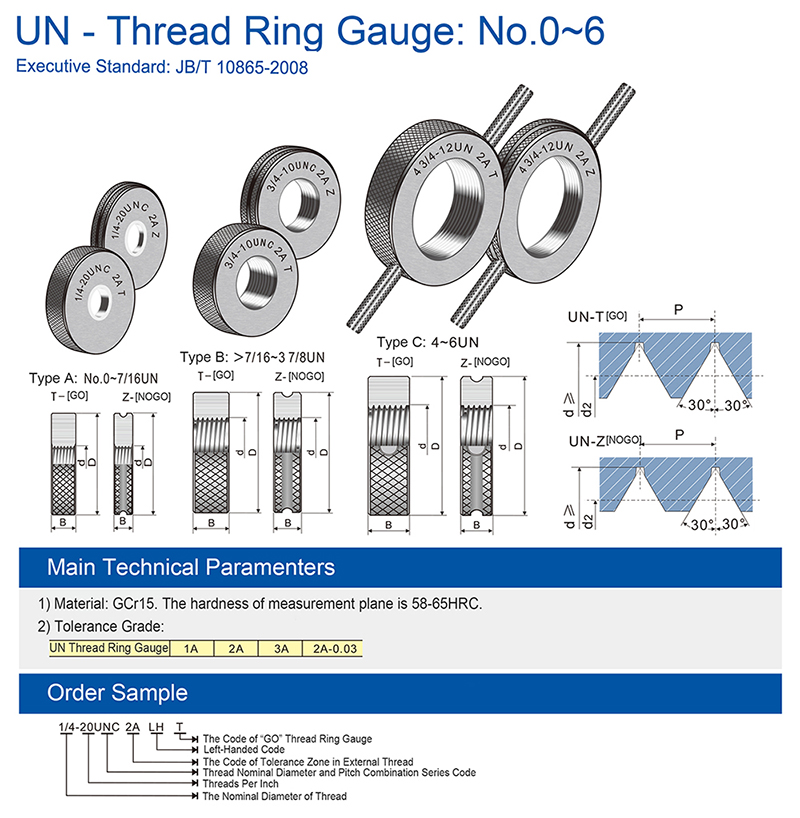

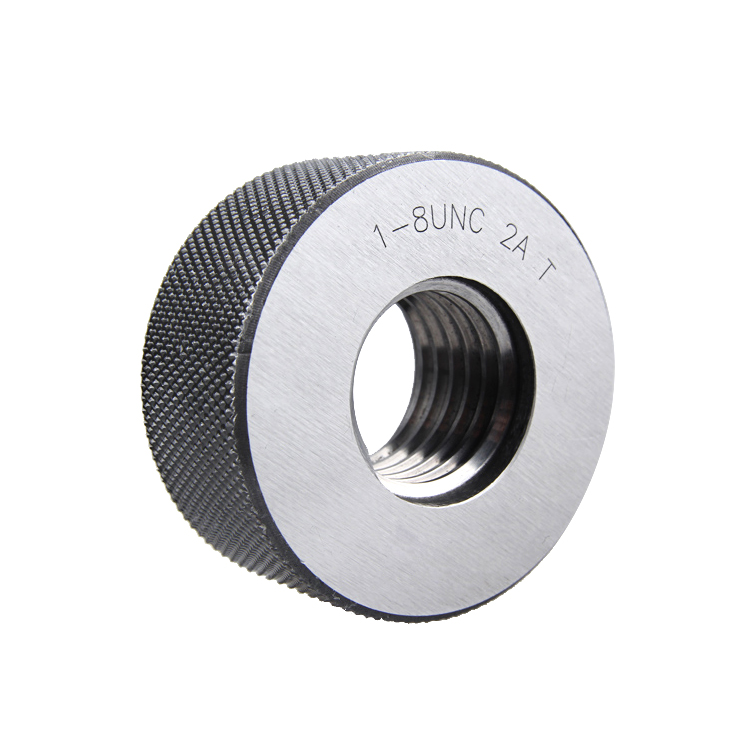

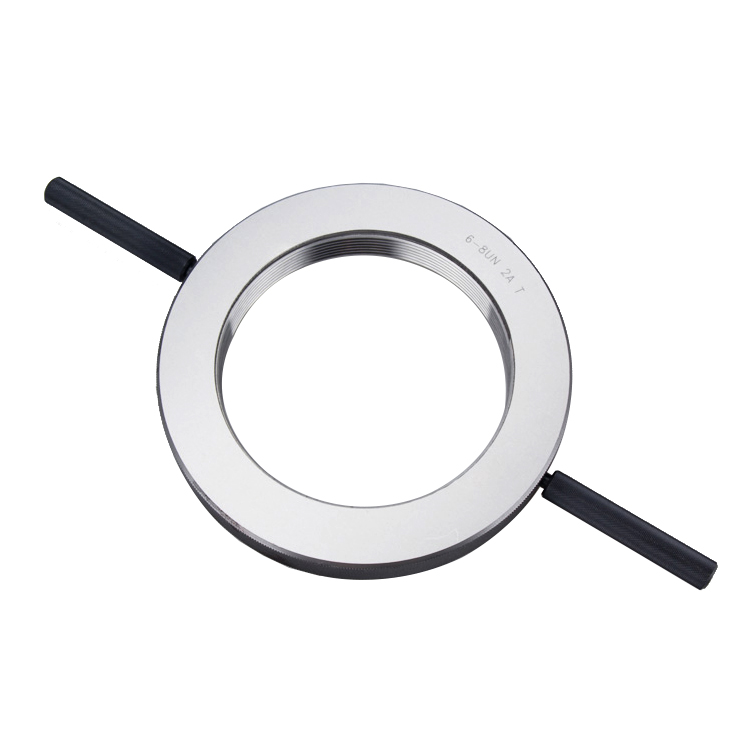

US Units gauge | UN UNC UNF UNEF UNS NPSC NPSM NPSH NPSF NPSI NPSL NH STI | 0~12'' | 2A,2B |

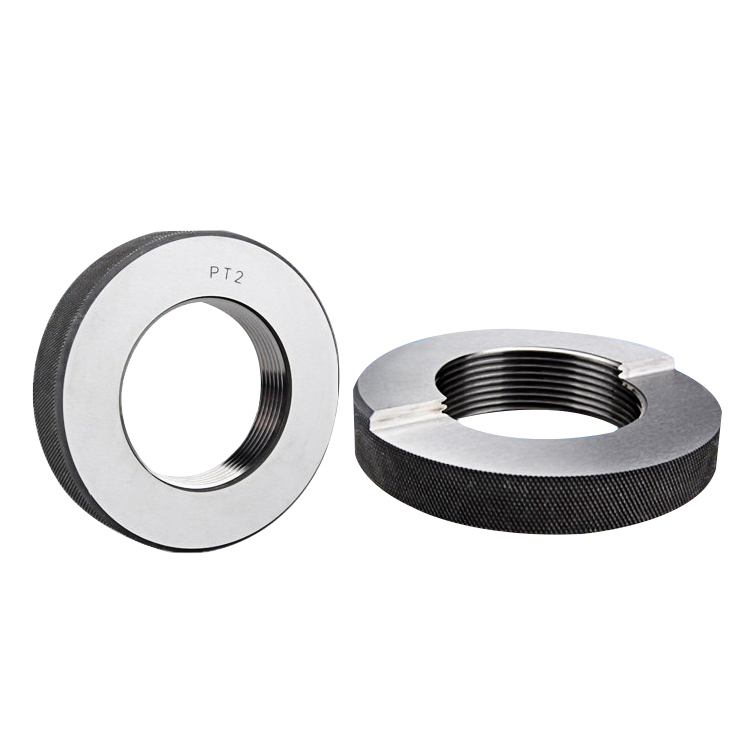

Jap Units gauge | PT | 0~12'' | 2A,2B |

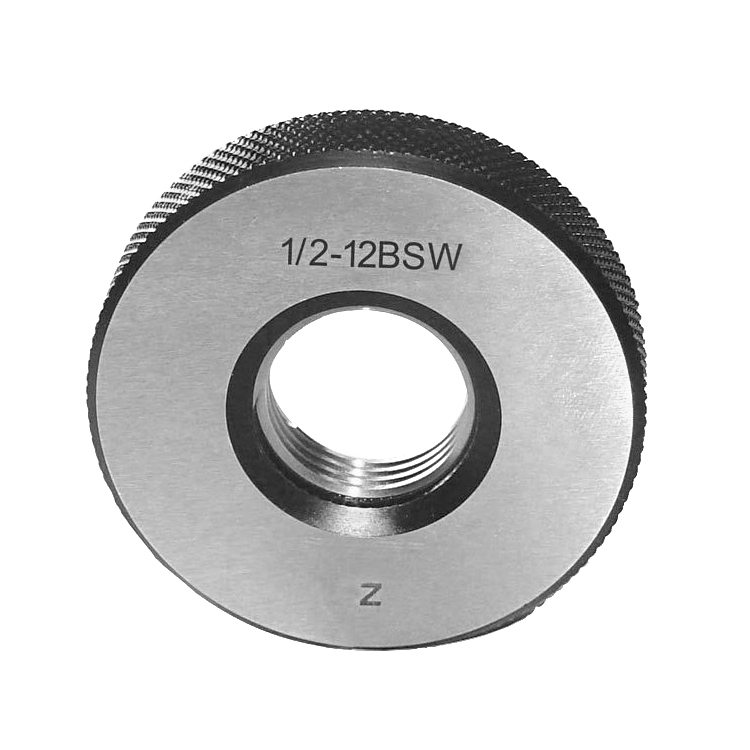

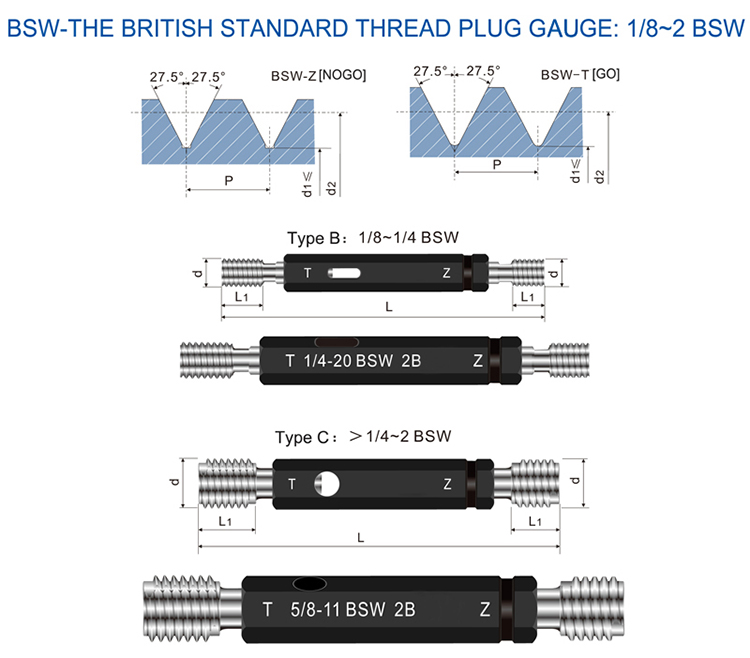

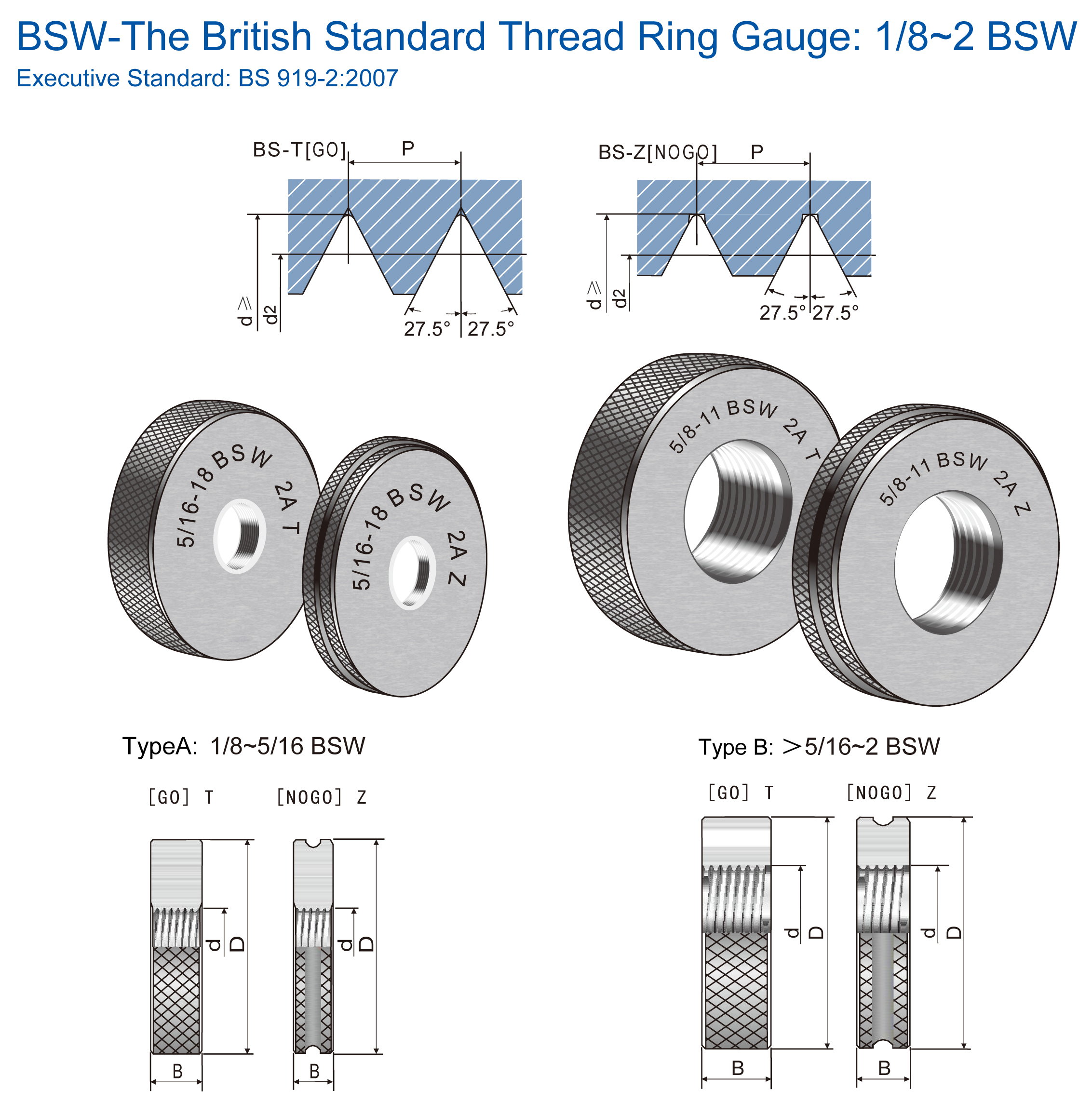

Imperial standard gauge | BSW BSF | 0~12'' | 2A,2B |

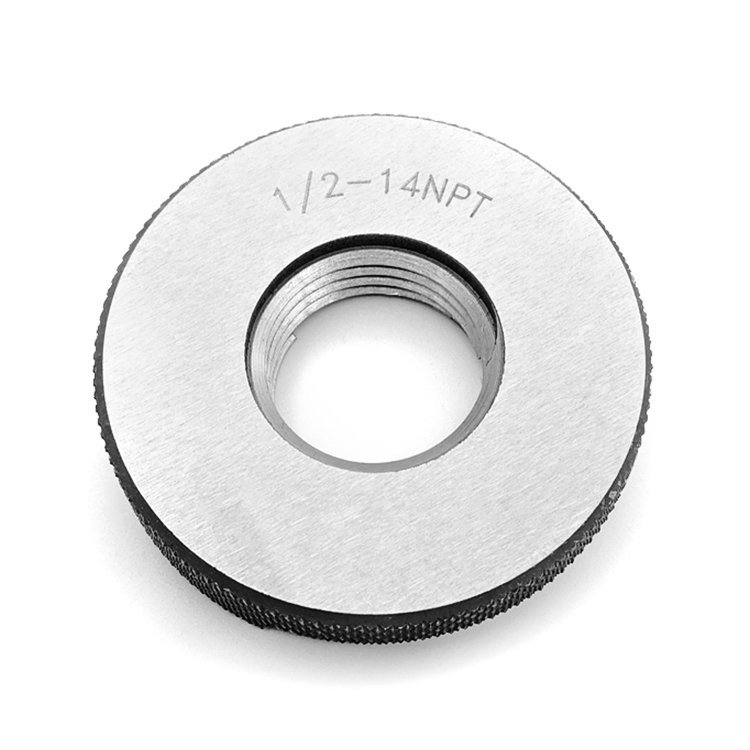

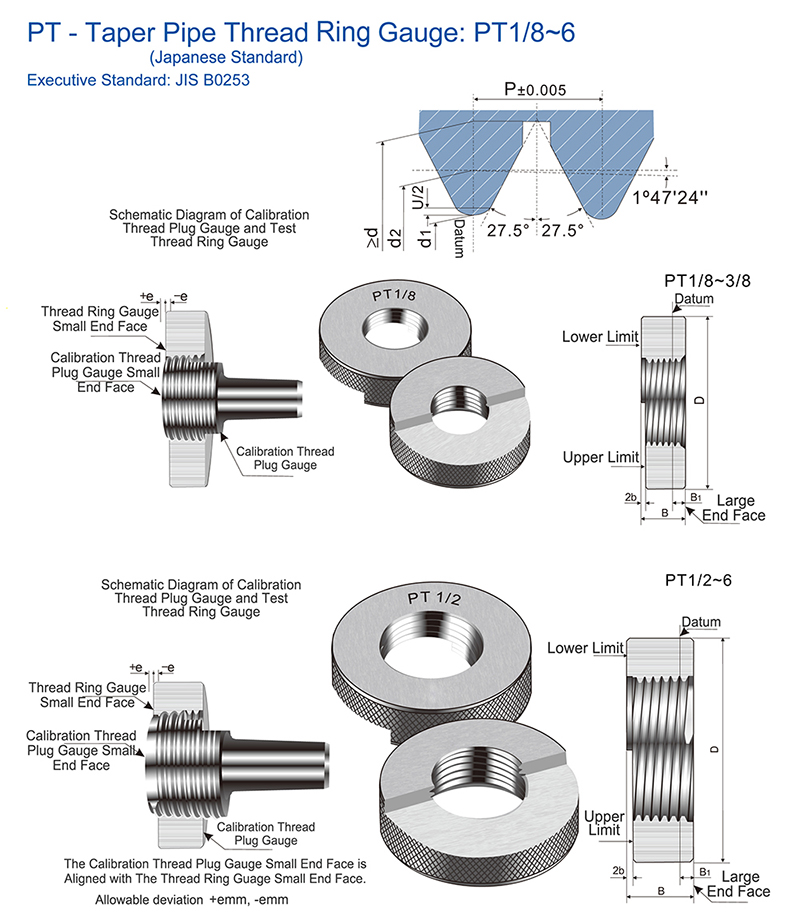

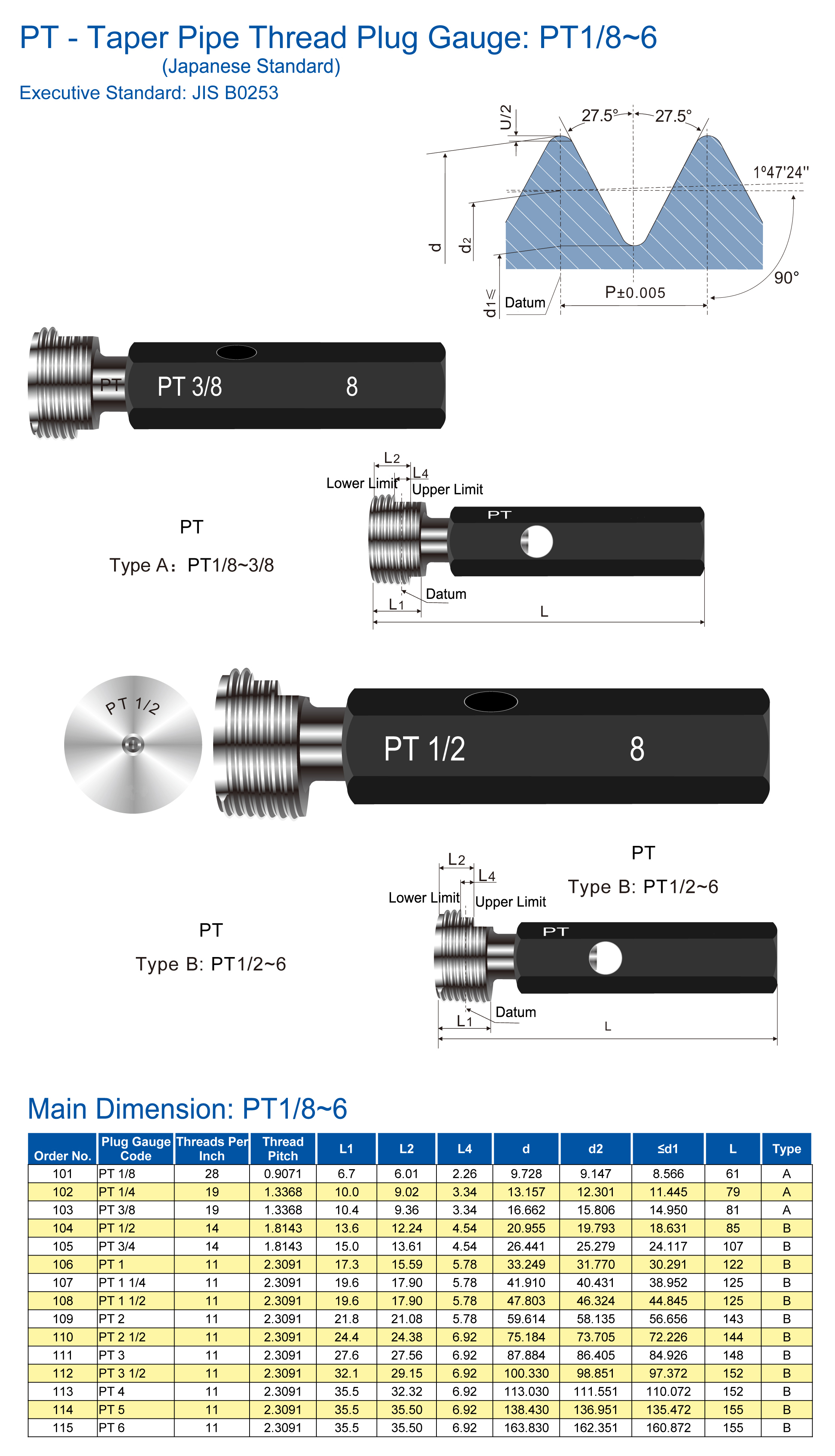

Taper gauge | NPT NPTF Z BKG R RB Rc RP PT ZG WKG BSPT ANPT PTF | 0~6'' | 2A,2B |

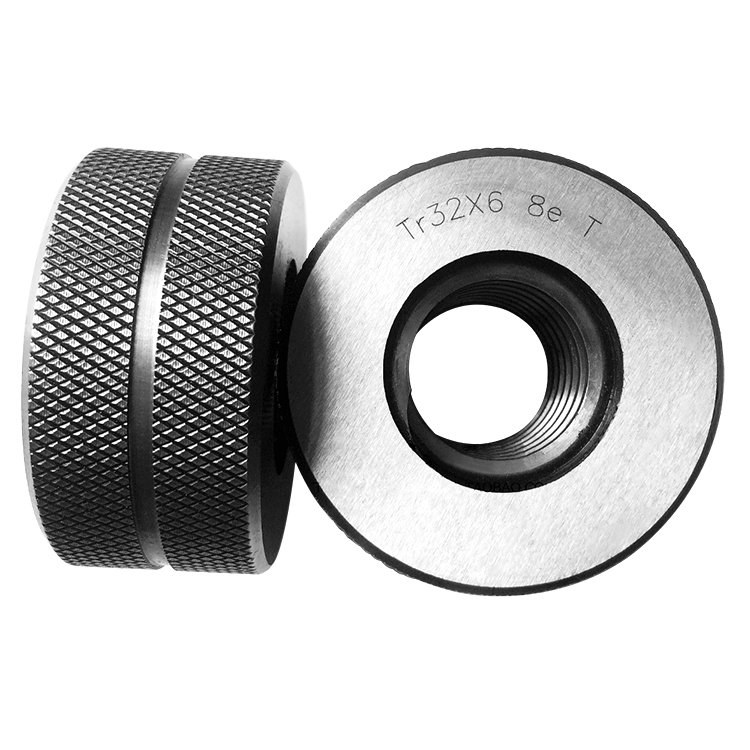

Trapezoidal gauge | Tr ACME STUB-ACME | 0~6'' | 2G,3G,4G |
other | API G PF PS BSP ST BSPP DIN spline gauge | 0~6'' |

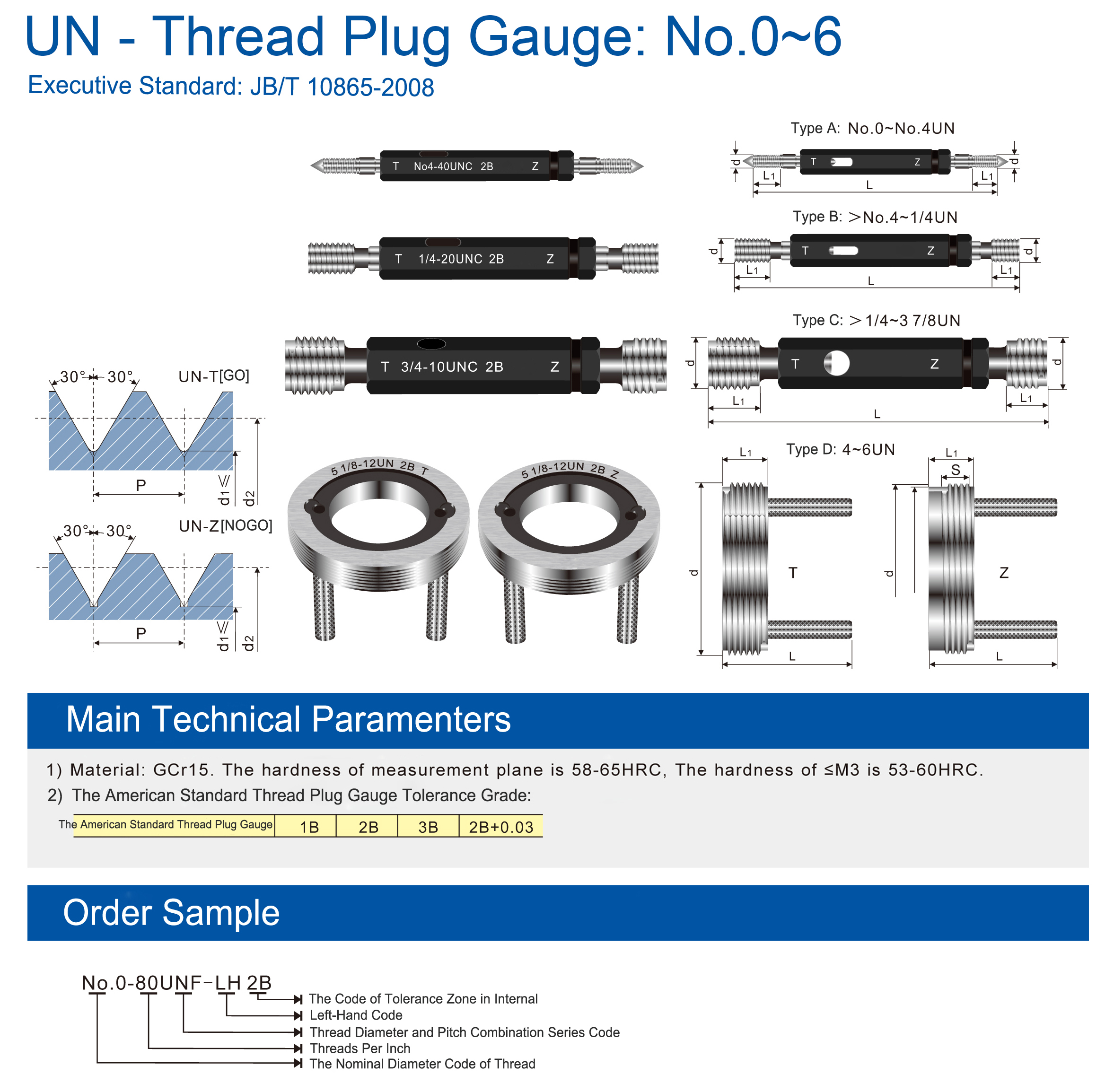

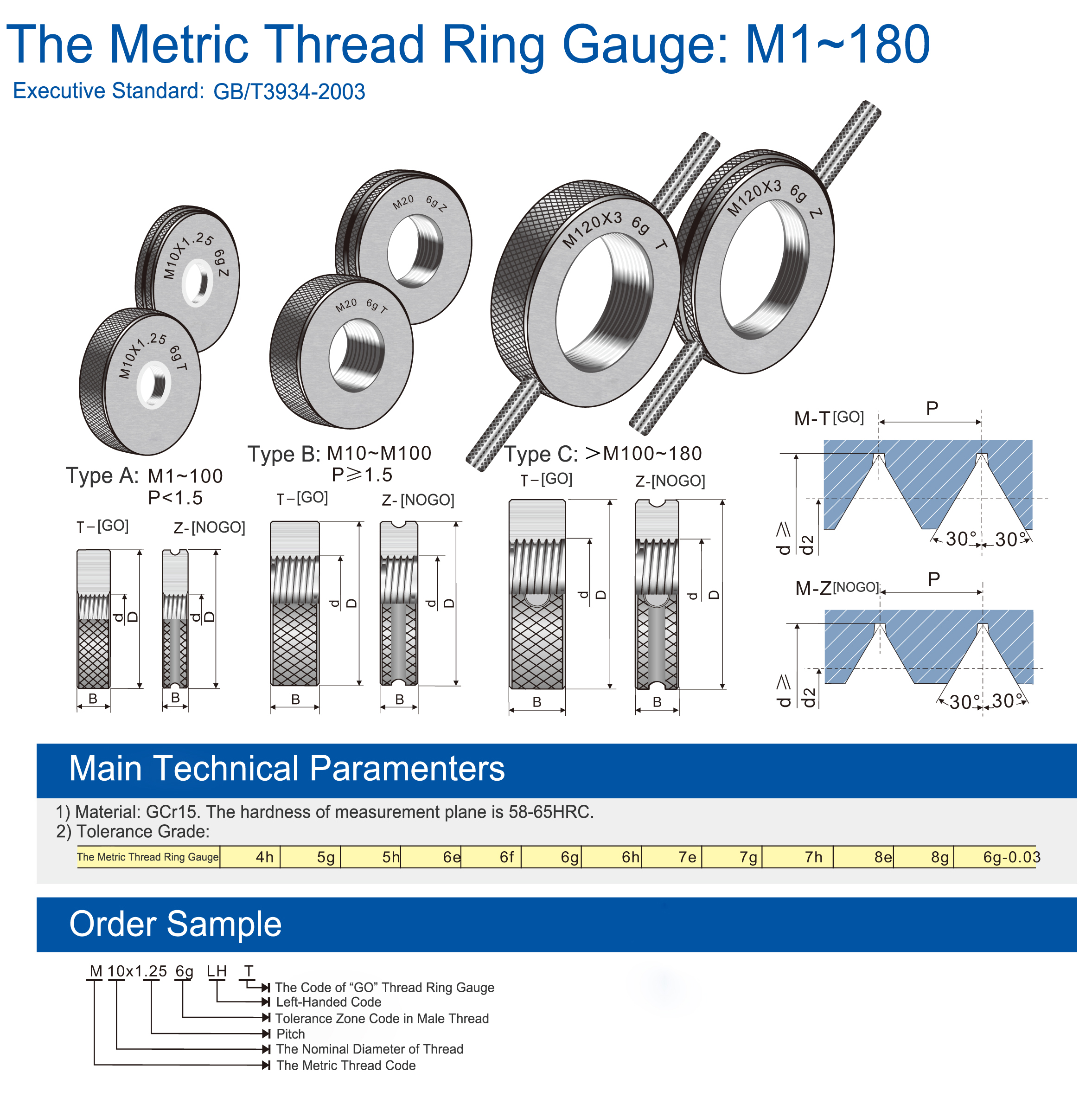

Details Images
Packing&Shipping

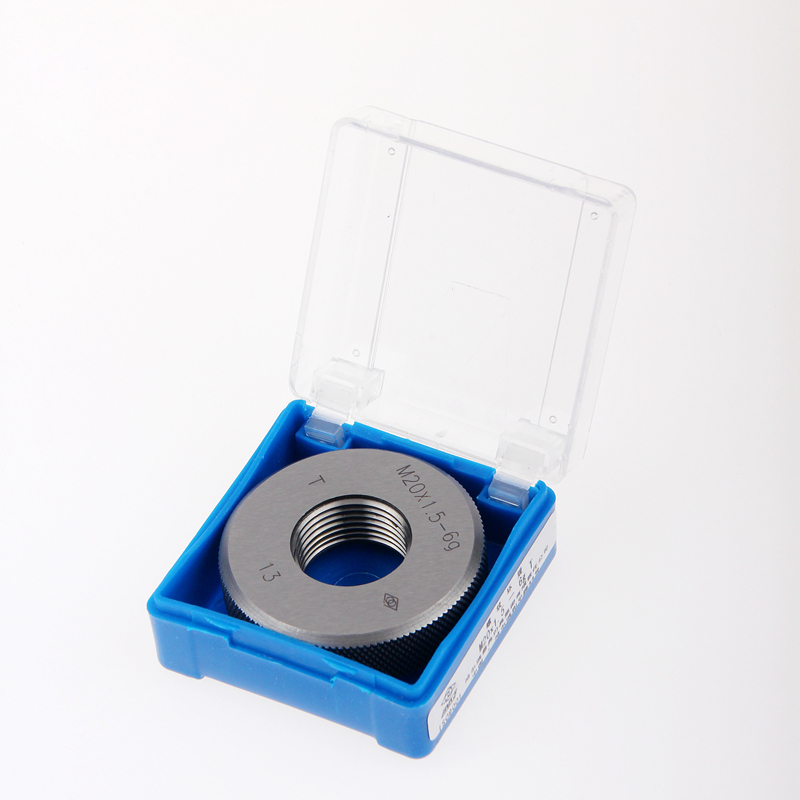

1.Thread plug gauge and thread ring gauge all packed with standard plastic tool box,if you need customized boxes,pls inform us in advance.
2.the tool box packed with Pearl cotton,then in carton box,if for big heavry product,we will packed with wooden box.

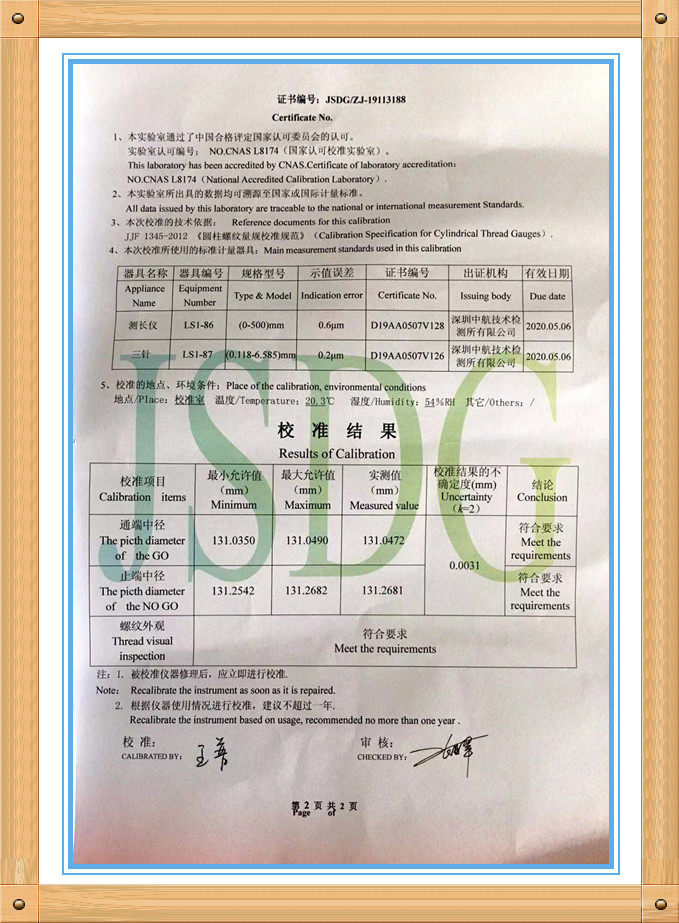

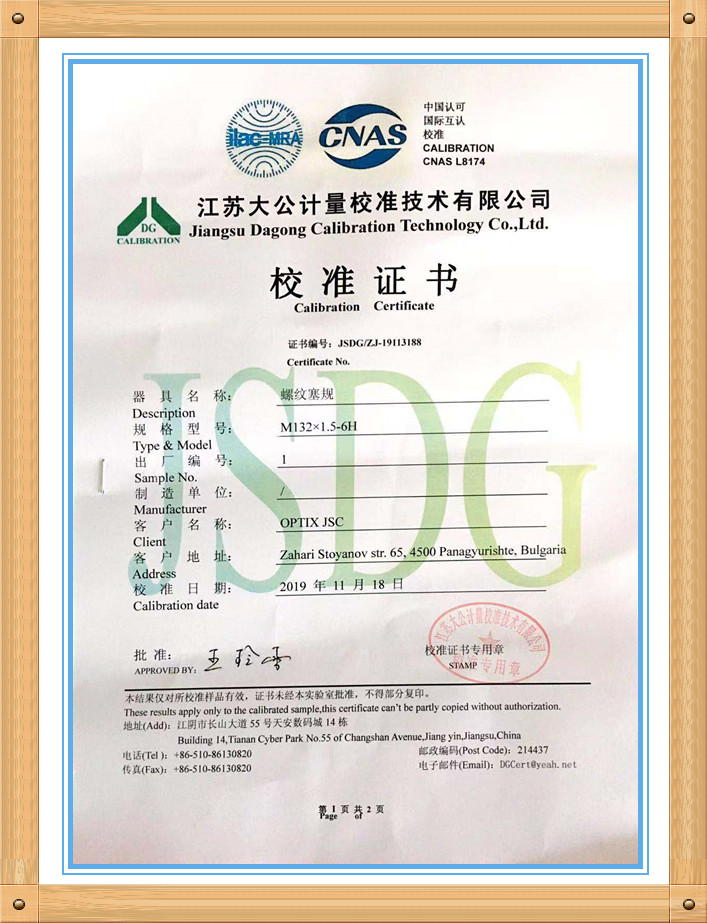

Certificate

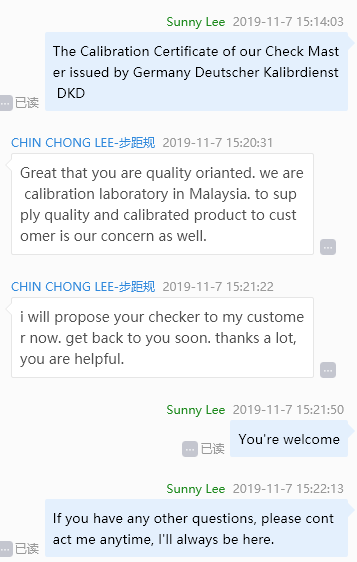

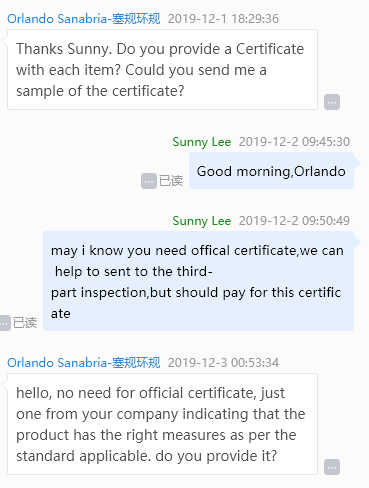

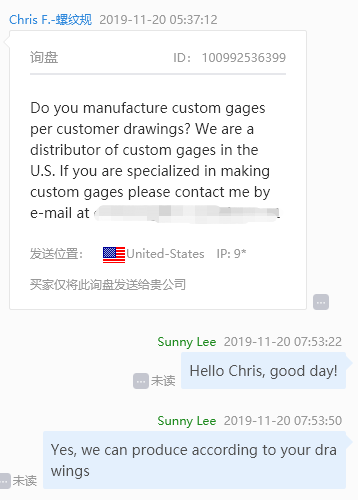

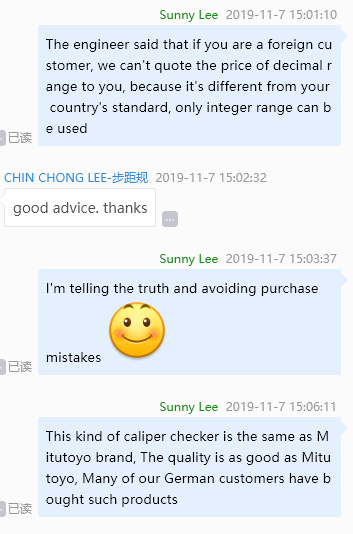

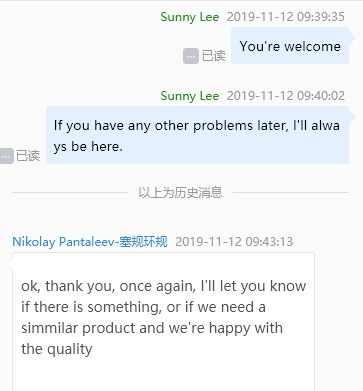

Customer Photos
If you sent inquiry off work time,We will reply you once we start work

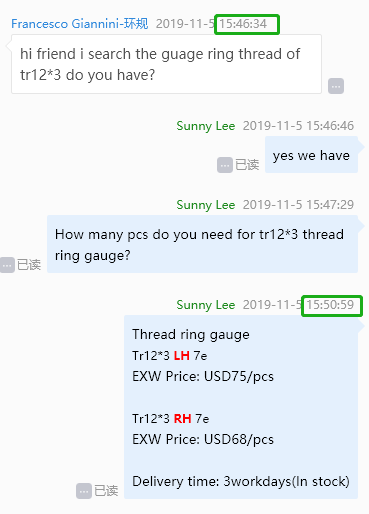

We can quote in 5mins for standard gauges
We have experience engineer can give you professional suggest
we can provide factory test Data if you do not need official certificate
We also can provide offical certificate
We provide after-sales service always
Why Choose Us
Most of standard specification have in stock,we can delivery in 3wordays,Non-standard specification can be customized
We can provide official certificate,if customer do not need official certificate,we also can provide factory test data
The customized gauge can provide No LOGO,the MOQ is 1pc,if the quantity is big,can mark customer's LOGO
